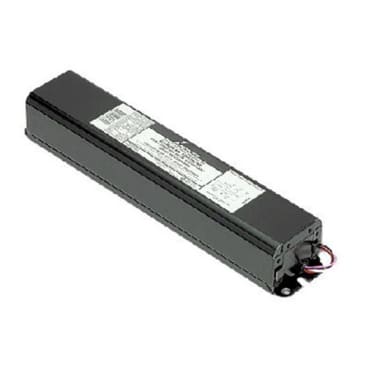

PHILIPS 505594 Image 1

MH F-CAN BALLAST 100W M90/140 120/347V PHILIPS 505594

MFR Part #: 505594
SKU #: 1117258
Brand: Signify | Advance
UPC: 781087007679
Please note this item is discontinued (order fulfillment will depend on stock availability): Advance 505594 F Can Magnetic HX-HPF HID Ballast, HID Metal Halide Lamp, 100 W Lamp, 120/347 V AC, Pulse, 1 Ballast Factor
This product may be subject to ecological fees.
Office, Schools, Retail Stores and Outdoor Applications
CSA Certified | RoHS Compliant

Advance HID Ballast, F Can Magnetic HX-HPF, HID Metal Halide Lamp, 100 W Lamp, 125 W Wattage, 120/347 V AC, 0.75/2.2 A, 60 Hz Frequency, Pulse Start, -20 deg F Minimum Starting, Power Factor: 0.9, 1 Lamp, Ballast Factor: 1, ANSI M90/140 Ballast Grade, 90 deg C, Metal, 12 in L x 2.6 in W x 3.9 in H Dimensions

Product Details

Advance HID Ballast, F Can Magnetic HX-HPF, HID Metal Halide Lamp, 100 W Lamp, 125 W Wattage, 120/347 V AC, 0.75/2.2 A, 60 Hz Frequency, Pulse Start, -20 deg F Minimum Starting, Power Factor: 0.9, 1 Lamp, Ballast Factor: 1, ANSI M90/140 Ballast Grade, 90 deg C, Metal, 12 in L x 2.6 in W x 3.9 in H Dimensions

Attributes

Amperage Rating: 0.75/2.2 A
Ballast Factor: 1
Ballast Grade: ANSI M90/140
Clearance Items: Clearance
Country Of Origin: Mexico
Dimensions: 12 in L x 2.6 in W x 3.9 in H
Frequency Rating: 60 Hz
Lamp Type: HID Metal Halide
Lamp Wattage: 100 W
Material: Metal
Minimum Starting Temperature: -20 deg F
Number of Lamps: 1
Power Factor: .9
Start Type: Pulse
Temperature Range: 90 deg C
Type: F Can Magnetic HX-HPF
Voltage Rating: 120/347 V AC
Wattage: 125 W

Features

  • The basic ballast is the open core and coil which is most often used as a component within a lighting luminaire
  • The core and coil also forms the nucleus of Philips® Advance five other ballast configurations
  • Ballast replacement kit with oil filled capacitor
