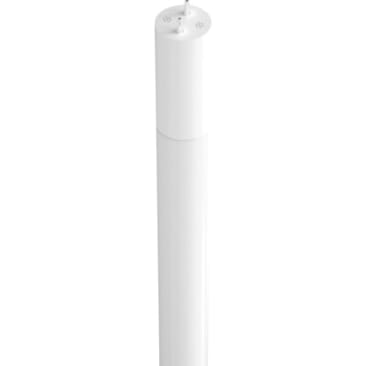

EIKO LED18WT8F/48/850-G7D Image 1

EIKO LED18WT8F/48/850K-G7D 18W T8 DIRECT FIT LED LAMP 5000K

MFR Part #: LED18WT8F/48/850-G7D
SKU #: 1123514
Brand: EIKO®
UPC: LED18WT8F/48/850K-G7D
EIKO® LED18WT8F/48/850-G7D Bypass Ballast With Non-Shunted Tombstone Lamp Holders, Fluorescent Lamp, 18 W Lamp
5 Year
This product may be subject to ecological fees.
Commercial, Industrial, Hospitality, Education, Healthcare, Retail Store
UL 1598C Listed

EIKO® Bypass Ballast, Fluorescent Lamp, 18 W Lamp, 120 to 277 V, 155 mA, 50/60 Hz, -4 deg F Minimum Starting, <20 % Total Harmonic Distortion (THD), Power Factor: >=0.99, Dimmable Dimmable/Non-Dimmable, 1 Lamps, G13 Medium Lamp Base, Wall Mount, Glass, Cool White, -4 to 113 deg F, 1.02 in Dia, 23.78 ft Length, 50000 hr Average Life

LED T8 replacement lamps directly replace fluorescent T8 lamps at a fraction of the energy cost.

Product Details

EIKO® Bypass Ballast, Fluorescent Lamp, 18 W Lamp, 120 to 277 V, 155 mA, 50/60 Hz, -4 deg F Minimum Starting, <20 % Total Harmonic Distortion (THD), Power Factor: >=0.99, Dimmable Dimmable/Non-Dimmable, 1 Lamps, G13 Medium Lamp Base, Wall Mount, Glass, Cool White, -4 to 113 deg F, 1.02 in Dia, 23.78 ft Length, 50000 hr Average Life

LED T8 replacement lamps directly replace fluorescent T8 lamps at a fraction of the energy cost.

Attributes

Country Of OriginUS
Lamp TypeFluorescent
Amperage Rating155 mA
Average Life50000 hr
ColorCool White
Diameter1.02 in
Dimmable/Non-DimmableDimmable
Frequency Rating50/60 Hz
Lamp BaseG13 Medium
Lamp Wattage18 W
Length23.78 ft
MaterialGlass
Minimum Starting Temperature-4 deg F
Mounting TypeWall
Number of Lamps1
Power Factor>=0.99
Temperature Rating-4 to 113 deg F
Total Harmonic Distortion (THD)<20 %
Voltage Rating120 to 277 V

Features

  • Solid state replacement for 2 ft, 3 ft and 4 ft T8 or T12 G13 base or U6 linear fluorescent
  • Frosted lens for uniform diffuse appearance
  • No external ballast or driver required
  • Up to 50% instant energy savings
  • Existing fixture maintains original UL compliance per UL1598C listing
  • Suitable for use in totally enclosed fixtures (excluding U6 items)
  • Integral drivers provide easy installation
  • For use with non-shunted tombstone lamp holders
