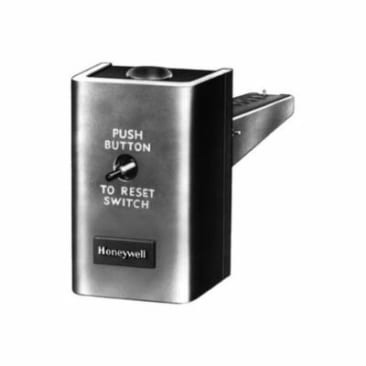

HONEYWELL L4029E1029/U LIMIT CONTROL SET AT 200F
Product Details
Attributes
Features
Resources
Resideo Limit Control, Series: L4029E, SPST, Pilot Duty: 0.25 A at 0.25 to 12 VDC, 3 in Element, 2-5/16 in W x 2 in D x 3-3/4 in H, Import
L4029E Reset Limit Control opens a line or low voltage circuit if the air temperature reaches a critical level. L4029E acts as a fire thermostat in the ducts of AC & ventilating systems. If the air temperature indicates a fire, the fan is shut down.
- Remote temperature sensing element detects and responds rapidly to temperature changes
- Totally enclosed single pole single throw (SPST) Micro Switch™ snap acting switch
- Visible control point scale and external adjustments screw permit easy setting
- Horizontal and/or vertical mounting of the remote element into boiler, tank, or other container unless otherwise noted
- Electrical ratings: Millivolt: 0.25 A at 0.25 to 12 VDC, full load: 8 A at 120 VAC: 5.1 A at 240 VAC, locked rotor - 48 A at 120 VAC: 30.6 A at 240 VAC
- Contacts break on temperature rise
- 66 in L capillary
