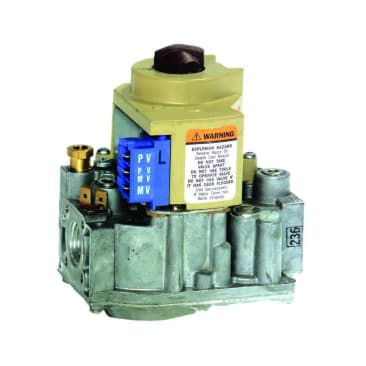

HONEYWELL VR8204H1006/U 1/2 24V INTERMITTENT PILOT GAS VALVE
MFR Part #: VR8204H1006/U
SKU #: 1218392
Brand: Honeywell
UPC: 085267112994
Resideo VR8204H1006/U Slow Opening Dual Automatic Valve Combination Gas Control, 24 VAC, 0.5 A, Intermittent Pilot Ignition, 0.5 psi
1 year
Inlet and Outlet Screen, Safety Shutoff, Manual Valve, (2) Automatic Operators, Pressure Regulator and Pilot Adjustment
L2025006 American Gas Association Design Certificate | 4214/4752 Australian Gas Association Design Certificate | Approved for Delta C Application | L2025006 Canadian Gas Association Design Certificate | CSA 112395 | UL MCCZ2.MH5323
Product Details
Attributes
Features
Resources
Resideo Dual Automatic Valve Combination Gas Control, Slow Opening, Series: VR8204, 24 VAC, 0.5 A, Intermittent Pilot Ignition, 0.5 psi, 0 to 175 deg F, Vertical Mount, 4-1/2 in W x 2-11/16 in D
Combination gas control for use in 24 VAC gas-fired, intermittent pilot appliances with capacities from 30 to 415 cfh.
Amperage Rating:.5 A
Country Of Origin:Mexico
Dimensions:4-1/2 in W x 2-11/16 in D
Ignition Type:Intermittent Pilot
Mounting Type:Vertical
Pressure Rating:.5 psi
Series:VR8204
Temperature Rating:0 to 175 deg F
Type:Slow Opening
Voltage Rating:24 VAC
- ON-OFF lighting sequence
- Compact size
- Diaphragm-operated second automatic valve opens under control of regulator, closes if gas or power supply is interrupted
- Meet codes requiring dual safety shutoff
- Natural to LP and LP to Natural conversion kits available for standard and slow opening gas valves
- All adjustments, wiring connections and pilot outlet are accessible from top of control
- Adjustable servo regulator effectively maintains almost constant gas output pressure under wide fluctuations in gas supply pressure
Product Details
Resideo Dual Automatic Valve Combination Gas Control, Slow Opening, Series: VR8204, 24 VAC, 0.5 A, Intermittent Pilot Ignition, 0.5 psi, 0 to 175 deg F, Vertical Mount, 4-1/2 in W x 2-11/16 in D
Combination gas control for use in 24 VAC gas-fired, intermittent pilot appliances with capacities from 30 to 415 cfh.
Attributes
Amperage Rating: .5 A
Country Of Origin: Mexico
Dimensions: 4-1/2 in W x 2-11/16 in D
Ignition Type: Intermittent Pilot
Mounting Type: Vertical
Pressure Rating: .5 psi
Series: VR8204
Temperature Rating: 0 to 175 deg F
Type: Slow Opening
Voltage Rating: 24 VAC
Features
- ON-OFF lighting sequence
- Compact size
- Diaphragm-operated second automatic valve opens under control of regulator, closes if gas or power supply is interrupted
- Meet codes requiring dual safety shutoff
- Natural to LP and LP to Natural conversion kits available for standard and slow opening gas valves
- All adjustments, wiring connections and pilot outlet are accessible from top of control
- Adjustable servo regulator effectively maintains almost constant gas output pressure under wide fluctuations in gas supply pressure
