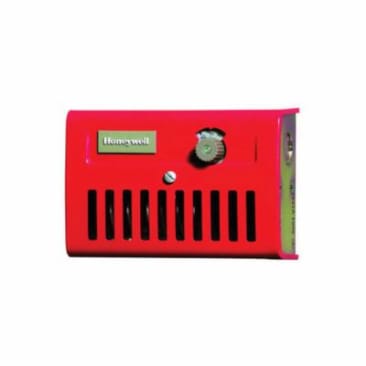

HONEYWELL T631A1063 THERMOSTAT
MFR Part #: T631A1063/U
SKU #: 1006160
Brand: Honeywell
UPC: 085267089494
Honeywell T631A1063/U Agriculture Temperature Controller, -10 to 100 deg F Control Range, 3 deg F Differential, SPDT Switch Action, Relay Switch, Import
For Use in Barns, Poultry Houses, Hog Barns, Pump Houses, Milk Houses And Crop Storage Houses
CSA LR1620 | Guide #400-E-O | UL E4436 Vol1 Sec UL Guide #XAPX
Product Details
Attributes
Features
Resources
Honeywell Agriculture Temperature Controller, Series: T631A, -10 to 100 deg F Control Range, 3 deg F Differential, SPDT, Relay Switch, Coiled Copper Tube Sensor, 1 Relay Outputs, 24/120/240 VAC, Red, 6-1/16 in W x 2-7/8 in D x 4-5/16 in H, Import
Provide line voltage control of heating, cooling and ventilating systems in farm buildings or storage areas.
Color:
Red
Control Range:
-10 to 100 deg F
Country Of Origin:
Mexico
Differential:
3 deg F
Dimensions:
6-1/16 in W x 2-7/8 in D x 4-5/16 in H
Domestic/Import:
Import
Number of Relay Outputs:
1
Sensor Type:
Coiled Copper Tube
Series:
T631A
Switch Action:
SPDT
Switch Type:
Relay
Voltage Rating:
24/120/240 VAC
- Treated to resist corrosion
- Slots in front and bottom of case provide maximum air circulation over the coiled sensing element
- SPDT snap switches permanently sealed against corrosion
- Easy mounting using screws through holes in back of case
- Contact ratings - 24 VAC - 2.0A FLA, 120 VAC - 7.4 FLA, 44.4 LRA, 240 VAC - 3.7 FLA, 22.2 LRA
- 125 deg F maximum operating temperature
Product Details
Honeywell Agriculture Temperature Controller, Series: T631A, -10 to 100 deg F Control Range, 3 deg F Differential, SPDT, Relay Switch, Coiled Copper Tube Sensor, 1 Relay Outputs, 24/120/240 VAC, Red, 6-1/16 in W x 2-7/8 in D x 4-5/16 in H, Import
Provide line voltage control of heating, cooling and ventilating systems in farm buildings or storage areas.
Attributes
Color: Red
Control Range: -10 to 100 deg F
Country Of Origin: Mexico
Differential: 3 deg F
Dimensions: 6-1/16 in W x 2-7/8 in D x 4-5/16 in H
Domestic/Import: Import
Number of Relay Outputs: 1
Sensor Type: Coiled Copper Tube
Series: T631A
Switch Action: SPDT
Switch Type: Relay
Voltage Rating: 24/120/240 VAC
Features
- Treated to resist corrosion
- Slots in front and bottom of case provide maximum air circulation over the coiled sensing element
- SPDT snap switches permanently sealed against corrosion
- Easy mounting using screws through holes in back of case
- Contact ratings - 24 VAC - 2.0A FLA, 120 VAC - 7.4 FLA, 44.4 LRA, 240 VAC - 3.7 FLA, 22.2 LRA
- 125 deg F maximum operating temperature
