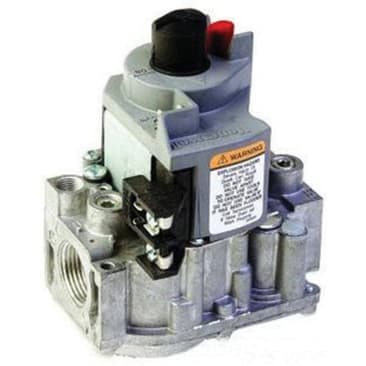

HONEYWELL VR8300C4506 3/4 24VAC STEP OPENING STANDING PILOT GAS VALVE
MFR Part #: VR8300C4506
SKU #: 1285569
Brand: Honeywell
UPC: 400051700889
Honeywell VR8300C4506 Gas Valve, 3/4 in Inlet, 3/4 in Outlet, Straight Flanged End, Natural Gas, 0.5 psi
(1) 3/4 in x 1/2 in Reducer Bushing, (2) Automatic Operators, Manual Valve, Safety Shut-Off, Pressure Regulator and Pilot Adjustment
CSA Certified | UL Listed
Product Details
Attributes
Features
Resources
Honeywell Gas Valve, 3/4 in Inlet, 3/4 in Outlet, Straight Flanged End, Natural Gas, Standing Pilot Ignition, 0.5 psi, 0 to 175 deg F, 24 VAC, 0.7 A, 60 Hz, 1/4 in Male Quick-Connect Electrical Connection, 4-1/16 in Overall Width, 6-1/8 in Overall Height
Gas Type:Natural Gas
Ignition Type:Standing Pilot
Amperage Rating:.7 A
Electrical Connection:1/4 in Male Quick-Connect
End Type:Straight Flanged
Frequency Rating:60 Hz
Inlet Size:3/4 in
Outlet Size:3/4 in
Overall Height:6-1/8 in
Overall Width:4-1/16 in
Pressure Rating:.5 psi
Temperature Rating:0 to 175 deg F
Voltage Rating:24 VAC
- Control includes safety shut-off, manual valve, two automatic
- Operators, pressure regulator and pilot adjustment
- Compact size
- Provides two automatic valves
- Solenoid operated first automatic valve opens on thermostat call for heat, closes when call for heat ends
- Diaphragm operated second automatic valve opens under control of regulator, closes if gas or power supply is interrupted
- Meets codes requiring dual safety shut-off
- Natural to LP and LP to Natural conversion kits available for standard and slow opening gas valves
- All adjustments, wiring connections and pilot outlet are accessible from top of control
- Adjustable servo regulator effectively maintains almost constant gas output pressure under wide fluctuations in gas supply pressure
- Compatible with ECO connector
- LITE-RITE (off-pilot-on) lighting sequence
Product Details
Honeywell Gas Valve, 3/4 in Inlet, 3/4 in Outlet, Straight Flanged End, Natural Gas, Standing Pilot Ignition, 0.5 psi, 0 to 175 deg F, 24 VAC, 0.7 A, 60 Hz, 1/4 in Male Quick-Connect Electrical Connection, 4-1/16 in Overall Width, 6-1/8 in Overall Height
Attributes
Gas Type: Natural Gas
Ignition Type: Standing Pilot
Amperage Rating: .7 A
Electrical Connection: 1/4 in Male Quick-Connect
End Type: Straight Flanged
Frequency Rating: 60 Hz
Inlet Size: 3/4 in
Outlet Size: 3/4 in
Overall Height: 6-1/8 in
Overall Width: 4-1/16 in
Pressure Rating: .5 psi
Temperature Rating: 0 to 175 deg F
Voltage Rating: 24 VAC
Features
- Control includes safety shut-off, manual valve, two automatic
- Operators, pressure regulator and pilot adjustment
- Compact size
- Provides two automatic valves
- Solenoid operated first automatic valve opens on thermostat call for heat, closes when call for heat ends
- Diaphragm operated second automatic valve opens under control of regulator, closes if gas or power supply is interrupted
- Meets codes requiring dual safety shut-off
- Natural to LP and LP to Natural conversion kits available for standard and slow opening gas valves
- All adjustments, wiring connections and pilot outlet are accessible from top of control
- Adjustable servo regulator effectively maintains almost constant gas output pressure under wide fluctuations in gas supply pressure
- Compatible with ECO connector
- LITE-RITE (off-pilot-on) lighting sequence
