HONEYWELL AM100C1070-UPEX1LF 1/2 PEX UNION LEAD FREE MIXING VALVE 80-120F
Product Details
Attributes
Features
Resources

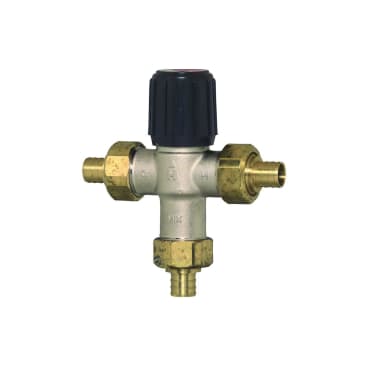

Honeywell Thermostatic Mixing Valve, Adjustable, Series: AM-1, 1/2 in Nominal, PEX Union, 150 psi, 70 to 120 deg F, 0.5 gpm Flow, Media: Water, 5.1 in Inlet to Outlet Length, Brass Body, EPDM O-Ring, Nickel Plated
Honeywell AM-1 series adjusts, maintains and limits the hot water temperature settings to provide comfort and protect equipment at home. While increasing the amount of safe, usable hot water, it efficiently offers anti-scald, anti-chill protection.
- Features dual purpose mixing or diverting values
- Offers constant water temperature under changing operating conditions
- Temperature is limited at any point and if cold water supply is interrupted, flow reduction occurs in seconds
- Provides reliable performance at minimum flow of 05 gpm and proportional valve for simultaneous control of hot and cold
- Maximum pressure 150 psi and maximum temperature of 212 deg F (100 deg C)
- Tamper resistant design with nickel plated brass construction and EPDM o-rings
- Designed for easy maintenance and Teflon® coating prevents mineral build-up and extends life
- The wettable surfaces of lead free models contain less than 0.25% of lead by weighted average
- Straight-through (hot and cold at the same level)
- Teflon® coated, nickel plated low lead brass body
- Teflon® coated low lead brass shuttle
Product Details
Honeywell Thermostatic Mixing Valve, Adjustable, Series: AM-1, 1/2 in Nominal, PEX Union, 150 psi, 70 to 120 deg F, 0.5 gpm Flow, Media: Water, 5.1 in Inlet to Outlet Length, Brass Body, EPDM O-Ring, Nickel Plated
Honeywell AM-1 series adjusts, maintains and limits the hot water temperature settings to provide comfort and protect equipment at home. While increasing the amount of safe, usable hot water, it efficiently offers anti-scald, anti-chill protection.
Attributes
Features
- Features dual purpose mixing or diverting values
- Offers constant water temperature under changing operating conditions
- Temperature is limited at any point and if cold water supply is interrupted, flow reduction occurs in seconds
- Provides reliable performance at minimum flow of 05 gpm and proportional valve for simultaneous control of hot and cold
- Maximum pressure 150 psi and maximum temperature of 212 deg F (100 deg C)
- Tamper resistant design with nickel plated brass construction and EPDM o-rings
- Designed for easy maintenance and Teflon® coating prevents mineral build-up and extends life
- The wettable surfaces of lead free models contain less than 0.25% of lead by weighted average
- Straight-through (hot and cold at the same level)
- Teflon® coated, nickel plated low lead brass body
- Teflon® coated low lead brass shuttle
