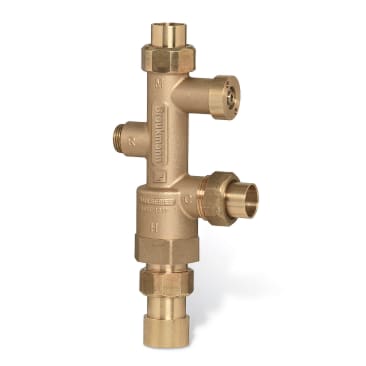

HONEYWELL AMX101-US-1LF/U Image 1

HONEYWELL AMX101-US-1LF/U AMX 3/4 SWEAT UNION LEAD FREE MIXING VALVE 70-145F

MFR Part #: AMX101-US-1LF/U
SKU #: 1107804
Brand: Honeywell
UPC: 085267338097
Resideo Braukmann DirectConnect™ AMX101-US-1LF/U Adjustable Mixing Valve, 3/4 in Nominal, C Union End Style, Brass/Stainless Steel Body, Import
1 Year
Check Valves cold water port|3/4 in FNPT Inlet|(2) 1/2 in Union Threaded Fittings
Heat Pump Systems, Domestic Water, Nursing Homes, Public Facilities, Automatic Faucets, Radiant Floor Heating, Space Heating, Combo Systems, Solar Hot Water, Greenhouses, Industrial Applications and Photo Processing
ASSE 1017 Certified|CSA Listed|IAPMO Listed|The wettable surface of lead-free models contain less than 0.25% of lead by weighted average

Resideo Braukmann DirectConnect™ Mixing Valve, Adjustable, Series: AMX, 3/4 in Nominal, C Union, 90 to 130 deg F, Media: Water, Brass/Stainless Steel Body, PTFE Coated, Import

Honeywell AMX series Direct Connect™ reduces water heater installation time as the cold and hot port position eliminates the need for typical elbows and tees. Designed for safety to prevent scalding, it also increases user comfort.

Product Details

Resideo Braukmann DirectConnect™ Mixing Valve, Adjustable, Series: AMX, 3/4 in Nominal, C Union, 90 to 130 deg F, Media: Water, Brass/Stainless Steel Body, PTFE Coated, Import

Honeywell AMX series Direct Connect™ reduces water heater installation time as the cold and hot port position eliminates the need for typical elbows and tees. Designed for safety to prevent scalding, it also increases user comfort.

Attributes

Connection Type: C Union
Country Of Origin: Mexico
Nominal Size: 3/4 in
Body Material: Brass/Stainless Steel
Domestic/Import: Import
Finish: PTFE Coated
Media: Water
Series: AMX
Temperature Rating: 90 to 130 deg F
Type: Adjustable

Features

  • Designed to be installed directly on the water heater hot port
  • Dual purpose mixing or diverting valve
  • Constant water temperature under different operating conditions
  • Flow reduction in seconds if cold water supply is interrupted
  • Heat trapping not required
  • Recirculation connection for fast response

Resources

Catalog
Owners/User Manual
