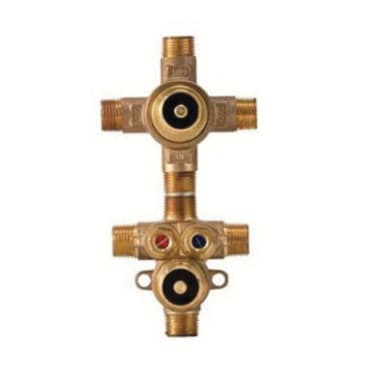

DXV D35005523.191 Image 1

DXV D35005523.191 3-WAY DIVERTER ROUGH-IN ONLY VALVE (DISCRETE)

MFR Part #: D35005523.191
SKU #: 1255069
Brand: DXV
UPC: 012611608070
DXV D35005523 Series D35005523.191 Thermostatic Rough Valve, 1/2 x 1/2 in Nominal, NPT, 1.75 gpm, 120 deg F, Brass Body
Limited Lifetime
ASME A112.18.1 Specified | ASSE 1016 | CalGreen Certified | CEC Compliant | CSA B125.1 Certified

DXV Thermostatic Rough Valve, D35005523 Series, 1/2 x 1/2 in Nominal, NPT Connection, 1.75 gpm Flow Rate, Brass Body, Plain, 120 deg F, Dimensions: 10.063 in L x 3.6875 in W, Domestic/Import: Import

The two handle thermostatic rough valve with three way diverter, with discrete functions, allows you to design a custom shower system. Constructed with brass for a lasting design the rough valve is a durable option for your shower system. A 3/4 in thermostatic cartridge continually adjusts to temperature and pressure changes, enabling it to maintain the perfect temperature. The valve pairs with our trim kit's for a sleek, modern shower design.

Product Details

DXV Thermostatic Rough Valve, D35005523 Series, 1/2 x 1/2 in Nominal, NPT Connection, 1.75 gpm Flow Rate, Brass Body, Plain, 120 deg F, Dimensions: 10.063 in L x 3.6875 in W, Domestic/Import: Import

The two handle thermostatic rough valve with three way diverter, with discrete functions, allows you to design a custom shower system. Constructed with brass for a lasting design the rough valve is a durable option for your shower system. A 3/4 in thermostatic cartridge continually adjusts to temperature and pressure changes, enabling it to maintain the perfect temperature. The valve pairs with our trim kit's for a sleek, modern shower design.

Attributes

Country Of Origin: ITALY
Flow Rate: 1.75 gpm
Nominal Size: 1/2 x 1/2 in
Series: D35005523 Series
Body Material: Brass
Connection Type: NPT
Dimensions: 10.063 in L x 3.6875 in W
Domestic/Import: Import
Finish: Plain
Temperature Rating: 120 deg F

Features

  • Durable forged brass construction to last a lifetime
  • Allows for three discrete functions only (no shared functions)
  • Adjustable hot limit safety stop reduces the risk of accidental scalding
  • 1/2 in thermostatic cartridge maintains constant temperature
  • Integral check stops ensure easy servicing at the valve and prevents the cross flow of hot and cold water
