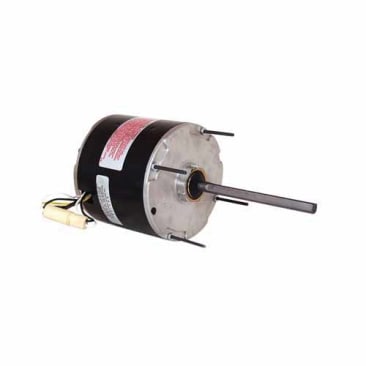

ECONOMASTER EM3731 3/4HP MOTOR 1075RPM 230V
MFR Part #: EM3731
SKU #: 1194445
Brand: Century®
UPC: 786674019585
Regal by Packard EconoMaster® EM3731 Condenser Fan Motor, Enclosed Enclosure, 3/4 hp, 208 to 230 VAC, 60 Hz, 1 ph, 48Y Frame, 1075 rpm Speed, Band/Stud Mount
CSA Certified | UL Listed
Product Details
Attributes
Features
Regal by Packard EconoMaster® Condenser Fan Motor, Condenser Fan Motors Application, 3/4 hp, 208 to 230 VAC, 5.3 A, 60 Hz Frequency, 1 ph, 1075 rpm Speed, 1 Speed, Enclosed Enclosure, 48Y Frame, 1/2 in Dia x 6 in L Shaft, Reversible Rotation, Ball Bearing, Band/Stud Mounting, 60 deg C Ambient, Insulation Class: Class B
Amperage Rating:5.3 A, 4.6 to 5.3 A
Application Type:Condenser Fan Motors
Bearing Type:Ball
Country Of Origin:China
Duty Type:Air Over
Enclosure Type:Enclosed
Frame:48Y
Frame Size:48Y
Frequency Rating:60 Hz
Horsepower:3/4 hp
HP Rating:3/4 hp
Insulation Class:Class B, B
Motor Enclosure Type:Totally Enclosed Air Over
Mounting Type:Band/Stud, Extended Stud, Belly Band
Number of Poles:6
Number of Speeds:1
Phase:1, 1 ph
Power Rating:.56 kW
Rotation:Reversible
Rotation Type:Reversible
Service Factor:1
Shaft Size:1/2 in Dia x 6 in L
Speed:1075 rpm
Speed Rating:1075 rpm
Temperature Rating:60 deg C Ambient
Voltage Rating:208 to 230 VAC
- Auto protector
- Energy efficient
- 25 in L leads
- 10 uF at 370 VAC capacitor required
Product Details
Regal by Packard EconoMaster® Condenser Fan Motor, Condenser Fan Motors Application, 3/4 hp, 208 to 230 VAC, 5.3 A, 60 Hz Frequency, 1 ph, 1075 rpm Speed, 1 Speed, Enclosed Enclosure, 48Y Frame, 1/2 in Dia x 6 in L Shaft, Reversible Rotation, Ball Bearing, Band/Stud Mounting, 60 deg C Ambient, Insulation Class: Class B
Attributes
Amperage Rating: 5.3 A, 4.6 to 5.3 A
Application Type: Condenser Fan Motors
Bearing Type: Ball
Country Of Origin: China
Duty Type: Air Over
Enclosure Type: Enclosed
Frame: 48Y
Frame Size: 48Y
Frequency Rating: 60 Hz
Horsepower: 3/4 hp
HP Rating: 3/4 hp
Insulation Class: Class B, B
Motor Enclosure Type: Totally Enclosed Air Over
Mounting Type: Band/Stud, Extended Stud, Belly Band
Number of Poles: 6
Number of Speeds: 1
Phase: 1, 1 ph
Power Rating: .56 kW
Rotation: Reversible
Rotation Type: Reversible
Service Factor: 1
Shaft Size: 1/2 in Dia x 6 in L
Speed: 1075 rpm
Speed Rating: 1075 rpm
Temperature Rating: 60 deg C Ambient
Voltage Rating: 208 to 230 VAC
Features
- Auto protector
- Energy efficient
- 25 in L leads
- 10 uF at 370 VAC capacitor required
