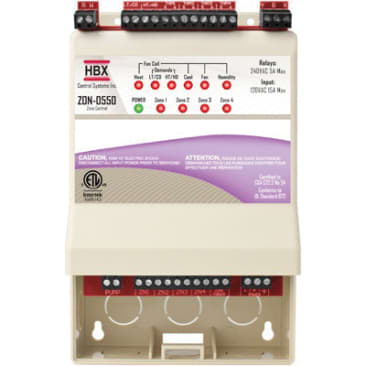

HBX ZON-0550 WI-FI ENABLED ZONE CONTROL 4 ZONES

HBX Wi-Fi Enabled Stand Alone Control, 5 A, 120 VAC, Number of Zones: 4, Programmability: Programmable, Wall Mounting, 4.76 in W x 7.4 in H x 2.6 in D

The ZON-0550 is the first Wi-Fi enabled zoning control to the hydronic industry and can be used in many different applications from radiant heating to forced air delivery systems or a combination of both applications. The ZON-0550 module has the capability to control up to four (4) THM-0300 or THM-0500 thermostats per module and can operate pumps, valves or motorized dampers to provide heating and/or cooling to your HVAC system. The control can be expandable up to a maximum of 20-zones that utilize wireless pairing communication between controllers. The zone controller provides outputs (R-W-Y-G-X) for air delivery systems to control fan coils, furnaces and air conditioning units. The zone outputs also allow for humidification and de-humidification control. The ZON-0550 provides two (2) demands outputs for a boiler with the added benefits of a system pump output and DHW control with priority. For geothermal applications, you can use the same demand outputs to control 2 or 4 pipe systems. The ZON-0550 incorporates exercising when equipment is not in use to prevent seizure as well as post purge.
