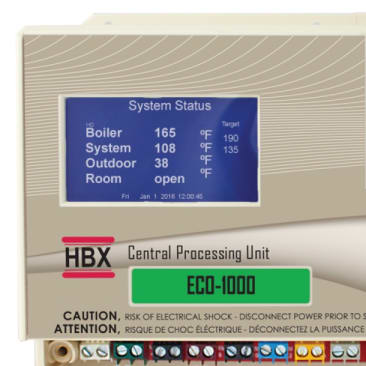

HBX ECO-1000 Image 1

GEOTHERMAL CONTROLS HBX ECO-1000

MFR Part #: ECO-1000
SKU #: 1077836
Brand: HBX
UPC: 400005636165
HBX ECO-1000 Expandable Geothermal/Solar Controller, 10 A
For single or dual tanks
CSA C22.2 No. 24 Certified | ETL File No. 3068143 Listed | UL 873 Listed

HBX Expandable Geothermal/Solar Controller, 10 A, 120 VAC, 10 to 40 deg C, 170 mm H x 190 mm W x 70 mm D

Simple to install and understand but integrated with behind the scenes sophistication to tackle the toughest HVAC design applications. Intentionally built with both the installer and end-user in mind. The HBX ECO-1000 is a fully integrated control unit-based on indoor/outdoor reset control technology which allows for geothermal or solar control capabilities.

Product Details

HBX Expandable Geothermal/Solar Controller, 10 A, 120 VAC, 10 to 40 deg C, 170 mm H x 190 mm W x 70 mm D

Simple to install and understand but integrated with behind the scenes sophistication to tackle the toughest HVAC design applications. Intentionally built with both the installer and end-user in mind. The HBX ECO-1000 is a fully integrated control unit-based on indoor/outdoor reset control technology which allows for geothermal or solar control capabilities.

Attributes

Amperage Rating: 10 A
Dimensions: 170 mm H x 190 mm W x 70 mm D
Temperature Rating: 10 to 40 deg C
Voltage Rating: 120 VAC

Features

  • Stages and rotates up to (14) 1-stage heat pumps or (7) 2-stage compressors
  • Backup heat source control
  • Operates reversing and 3-way diverting valves
  • Heat pump circulator control
  • Specific auxiliary heat programming parameters
  • Fault indicator
  • Brownout detection
  • On-board graphing with built-in operation history
  • Warm/cold weather shutdown feature
  • Outdoor reset technology
  • Built-in pump sequencer
  • On-board set points
  • Built-in DHW capabilities
  • Programmable reset curve
  • Solar control
