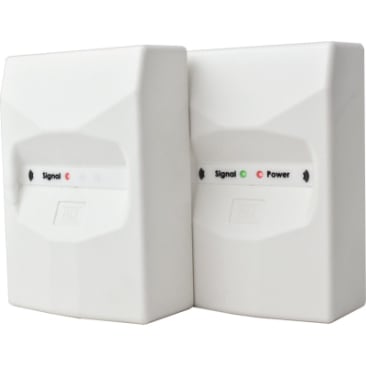

HBX WAV-0100 Image 1

WIRELESS OUTDOOR SENSOR HBX WAV-0100

MFR Part #: WAV-0100
SKU #: 1171770
Brand: HBX
UPC: 400008228985
HBX WAV-0100 Wireless Outdoor Sensor, -20 to 220 deg F, Wall Mounting, 24 VAC
Limited
(2) AA Battery

HBX Wireless Outdoor Sensor, -20 to 220 deg F, Wall Mounting, 24 VAC, 2.4 GHz Frequency, 2000 ft Detection, Switching Action: On/Off, Dimensions: 116 mm L x 78 mm W x 43 mm H

Introducing the new HBX wireless outdoor sensor, the WAV-0110. This wireless outdoor sensor goes against all conventional wireless technology. While others communicate only with their own devices, HBX has developed a way to broaden horizons. The WAV-0110 is able to connect to any control that uses a thermistor input for its outdoor sensing. Because of this revolutionary technology, the WAV-0110 can connect to boilers, reset controls, thermostats and many other devices. This makes the WAV-0110 perfect for retrofits as well as new installs. The WAV-0110 is a 2-part sensor. The first part connects directly to the outdoor thermistor input of your device and the second is placed outside. The devices use a very robust and proprietary communication to ensure the temperature is delivered 100% of the time. HBX has also developed specialized algorithms to save battery power, significantly extending battery life of the outdoor sensor.

Product Details

HBX Wireless Outdoor Sensor, -20 to 220 deg F, Wall Mounting, 24 VAC, 2.4 GHz Frequency, 2000 ft Detection, Switching Action: On/Off, Dimensions: 116 mm L x 78 mm W x 43 mm H

Introducing the new HBX wireless outdoor sensor, the WAV-0110. This wireless outdoor sensor goes against all conventional wireless technology. While others communicate only with their own devices, HBX has developed a way to broaden horizons. The WAV-0110 is able to connect to any control that uses a thermistor input for its outdoor sensing. Because of this revolutionary technology, the WAV-0110 can connect to boilers, reset controls, thermostats and many other devices. This makes the WAV-0110 perfect for retrofits as well as new installs. The WAV-0110 is a 2-part sensor. The first part connects directly to the outdoor thermistor input of your device and the second is placed outside. The devices use a very robust and proprietary communication to ensure the temperature is delivered 100% of the time. HBX has also developed specialized algorithms to save battery power, significantly extending battery life of the outdoor sensor.

Attributes

Dimensions116 mm L x 78 mm W x 43 mm H
Frequency Rating2.4 GHz
Mounting TypeWall
Temperature Rating-20 to 220 deg F
Voltage Rating24 VAC
Detection Range2000 ft
Switching ActionOn/Off

Features

  • 500 Ohm/5/10/12 kOhm thermistor options built-in dipswitch selectable
  • Input for external strap on sensor
  • Proprietary pairing and communication protocol
  • Works with any control, not just an HBX controls
  • No electrician needed to wire up saves time and money
  • Easy-to-install and service
  • Know when to change battery with the indicator
