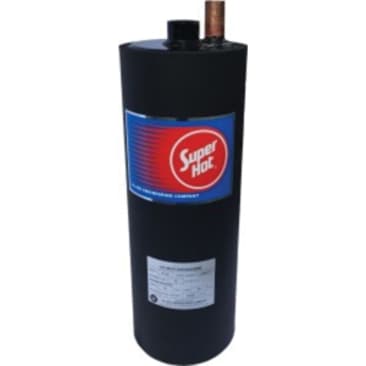

ALLIED CX-80 HEAT EXCHANGER
MFR Part #: CX-80
SKU #: 0502933
Brand: Super Hot®
UPC: 400000911939
Super Hot® CX-80 Heat Exchanger, Steel
3 Year
For isolating systems with non-oxygen barrier tubing or poly-b to prevent corrosion in the primary loop and boilers
Product Details
Attributes
Features
Resources
Super Hot® Heat Exchanger, 80000 Btu/hr, 8 gpm Flow Rate, FNPT Connection, 7 in Diameter, Steel, 15-1/2 in H, Additional Information: 1 in Connection
BTU Rating:
80000 Btu/hr
Flow Rate:
8 gpm
Additional Information:
1 in Connection
Connection Size:
1 in
Connection Type:
FNPT
Diameter:
7 in
Dimensions:
15-1/2 in H
Material:
Steel
- The Super Hot CX heat exchanger is constructed from high-efficiency finned copper tubing and geometrically designed to maximize heat transfer from the primary loop
- Ambient temperature standby losses are virtually eliminated because there is no stack, flue or storage tank
- The tank less coil saves energy by only heating the amount of water which will be used immediately
- Radiant floor water inside the copper finned coil is heated by boiler water flowing through the steel shell
- The primary boiler loop is isolated and protected from the corrosive water in the secondary loop which flows through the copper coil
- Long life copper tubing prevents corrosion problems associated with oxygenated water and open systems, while wide diameter waterways resist plugging up and ensures years of maintenance-free heating
- The compact design saves space and makes handling a breeze
Product Details
Super Hot® Heat Exchanger, 80000 Btu/hr, 8 gpm Flow Rate, FNPT Connection, 7 in Diameter, Steel, 15-1/2 in H, Additional Information: 1 in Connection
Attributes
BTU Rating: 80000 Btu/hr
Flow Rate: 8 gpm
Additional Information: 1 in Connection
Connection Size: 1 in
Connection Type: FNPT
Diameter: 7 in
Dimensions: 15-1/2 in H
Material: Steel
Features
- The Super Hot CX heat exchanger is constructed from high-efficiency finned copper tubing and geometrically designed to maximize heat transfer from the primary loop
- Ambient temperature standby losses are virtually eliminated because there is no stack, flue or storage tank
- The tank less coil saves energy by only heating the amount of water which will be used immediately
- Radiant floor water inside the copper finned coil is heated by boiler water flowing through the steel shell
- The primary boiler loop is isolated and protected from the corrosive water in the secondary loop which flows through the copper coil
- Long life copper tubing prevents corrosion problems associated with oxygenated water and open systems, while wide diameter waterways resist plugging up and ensures years of maintenance-free heating
- The compact design saves space and makes handling a breeze
