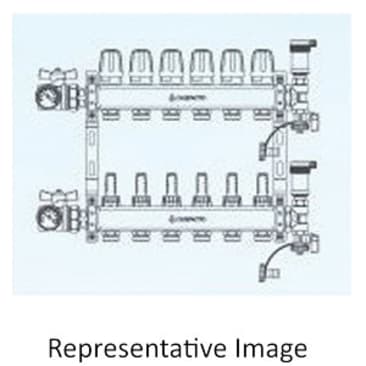

CALEFACTIO MAN6-SS100 1IN FIP 6-LOOP STAINLESS STEEL 304 MANIFOLD
Product Details
Attributes
Features
Resources
Calefactio 6-Loop Manifold Header, 14 gpm Flow Rate, 125 psi, 230 deg F, 1 in, Stainless Steel
Calefactio's stainless steel manifold kit is delivered pre-assembled and ready to install. Headers are offered in 11 models (2 to 12 loops) with a maximum flowrate of 14 gallons per minute (GPM). They come in pair and the kit includes supply and return headers, isolating valve, wall support, flowmeter, surface themometer (0-80 deg C), air purger and drain. The integrated flowmeters allow the user to adjust the flow easily in each loop. Circuit isolation valves are also compatible with 24 V actuators from Calefactio (#AC24VNC).
- Made of 304 stainless steel
- 1 in connections
- Pre-assembled on wall support
- Integrated flowmeters (5 LPM/1.3 GPM per loop)
- Maximum pressure: 125 PSI/862 kPa
- Maximum temperature: 230 deg F/110 deg C
- Provided with air purger and drain
- Compatible with 24 V actuators from Calefactio (#AC24NC)
- NPT ball valve with integrated thermometer
- Compatible with glycol used for heating
- Possibility to isolate each loop with isolating valve and balancing valve
Product Details
Calefactio 6-Loop Manifold Header, 14 gpm Flow Rate, 125 psi, 230 deg F, 1 in, Stainless Steel
Calefactio's stainless steel manifold kit is delivered pre-assembled and ready to install. Headers are offered in 11 models (2 to 12 loops) with a maximum flowrate of 14 gallons per minute (GPM). They come in pair and the kit includes supply and return headers, isolating valve, wall support, flowmeter, surface themometer (0-80 deg C), air purger and drain. The integrated flowmeters allow the user to adjust the flow easily in each loop. Circuit isolation valves are also compatible with 24 V actuators from Calefactio (#AC24VNC).
Attributes
Features
- Made of 304 stainless steel
- 1 in connections
- Pre-assembled on wall support
- Integrated flowmeters (5 LPM/1.3 GPM per loop)
- Maximum pressure: 125 PSI/862 kPa
- Maximum temperature: 230 deg F/110 deg C
- Provided with air purger and drain
- Compatible with 24 V actuators from Calefactio (#AC24NC)
- NPT ball valve with integrated thermometer
- Compatible with glycol used for heating
- Possibility to isolate each loop with isolating valve and balancing valve
