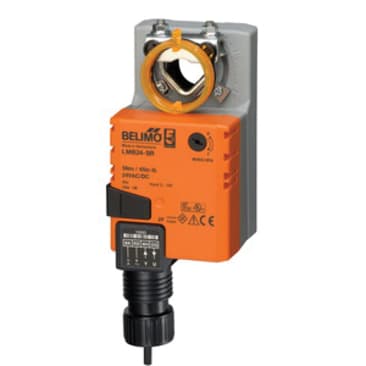

BELIMO LMB24-SR Image 1

BELIMO LMB24-SR NON-SPRING RETURN ACTUATOR

MFR Part #: LMB24-SR
SKU #: 1084719
Brand: BELIMO®
UPC: 400005882791
BELIMO® LMB24-SR Damper Actuator, 24 VAC/VDC, 4 - 20 mA, 1.5 W Running, 0.4 W Holding, 95 sec Running Timing
For proportional modulation of dampers in HVAC systems
cUL/US according to UL 60730-1A/-2-14, CAN/CSA E60730-1:02, CE according to 2004/108/EEC and 2006/95/EC, ISO 9001

BELIMO® Damper Actuator, 4 - 20 mA, 24 VAC/VDC, 50/60 Hz, 1.5 W Running, 0.4 W Holding, 3 V-A VA, 3 ft, 18 ga Plenum Rated Cable, 1/2 in Conduit Connector Electrical Connection, 95 sec Running Timing, 45 in-lb Torque, 100 kohm at 0.1 mA, 500 ohm Input, Less Than 35 dBA, -22 to 122 deg F Ambient, -40 to 176 deg F Storage, NEMA 2, IP54 Enclosure, 5 - 95% RH Non-Condensing (EN 60730-1) Humidity, 6.56 in L x 2.6 in W x 2.34 in H

Product Details

BELIMO® Damper Actuator, 4 - 20 mA, 24 VAC/VDC, 50/60 Hz, 1.5 W Running, 0.4 W Holding, 3 V-A VA, 3 ft, 18 ga Plenum Rated Cable, 1/2 in Conduit Connector Electrical Connection, 95 sec Running Timing, 45 in-lb Torque, 100 kohm at 0.1 mA, 500 ohm Input, Less Than 35 dBA, -22 to 122 deg F Ambient, -40 to 176 deg F Storage, NEMA 2, IP54 Enclosure, 5 - 95% RH Non-Condensing (EN 60730-1) Humidity, 6.56 in L x 2.6 in W x 2.34 in H

Attributes

Frequency Rating: 50/60 Hz
Voltage Rating: 24 VAC/VDC

Features

  • Non fail-safe actuator
  • 95 deg angle of rotation
  • Reversible with built-in switch direct rotation
  • External push button manual override
  • Modulating control
  • No safety function
