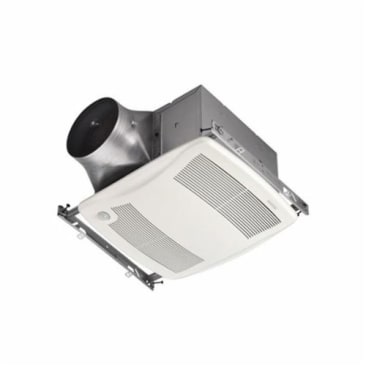

BROAN ZB80M ULTRA GREEN 80CFM MULTI SPEED MOTION SENSING FAN
MFR Part #: ZB80M
SKU #: 1135840
Brand: BROAN
UPC: 026715202898
NuTone® ULTRA GREEN™ ZB80M Multi-Speed Motion Sensing Fan, 80 cfm, 4 in, 6 in Dia Duct, 6.4 W, 0.1 A, Domestic
ENERGY STAR® Certified | UL Listed
Product Details
Attributes
Features
Resources
NuTone® ULTRA GREEN™ Motion Sensing Fan, Multi-Speed, 80 cfm, 4 in, 6 in Duct Dia, 0.1 A, 6.4 W, 13-1/8 in Grille Length, 14 in Grille Width, Polymer Grille, 10-1/2 in Housing Length, 11-3/8 in Housing Width, 7-5/8 in Housing Height, Stainless Steel Housing, Ceiling Mount, White, Domestic
Broan® ULTRA™ Motion Sensing Fans deliver everything you wished for in a bath fan premium ventilation to help reduce airborne pollutants, ease of installation, energy efficiency, consistent power, extremely quiet operation and multi-speed capability. Best of all, they have the ability to know when they should be in the "normal" continuous ventilation mode and when they should kick up to the high speed mode to evacuate shower humidity or odors.
Country Of Origin:
US
Amperage Rating:
.3 A, .1 A
CFM Rating:
80 cfm
Color:
White, White Grille
Domestic/Import:
Domestic
Duct Diameter:
4 in, 6 in
Duct Size:
6 or 4 in
Flow Rate:
80 cfm
Frequency Rating:
60 Hz
Grille Length:
13-1/8 in
Grille Material:
Polymer
Grille Size:
13-1/8 in L x 14 in W
Grille Width:
14 in
Height:
7-5/8 in
Housing Height:
7-5/8 in
Housing Length:
10-1/2 in
Housing Material:
Stainless Steel
Housing Width:
11-3/8 in
Length:
10-1/2 in
Material:
Steel, Polymeric
Mounting Type:
Ceiling
Power Rating:
6.4 W
Speed Rating:
610 rpm
Type:
Multi-Speed
Voltage Rating:
120 VAC
Width:
11-3/8 in
- 80 cfm quickly reduces humidity to prevent or eliminate fogged mirrors and manage moisture in bathrooms upto 70 sq-ft, so your vision will always be clear and your surroundings will always be comfortable
- ULTRASense™ M, motion sensing technology, offers a hands free solution for maximum convenience, the fan will increase to maximum speed from the lower, continuous setting when motion is detected which is ideal for family members who forget to turn the fan on and will stay on the max setting for the user-set 5 to 60 min period after no motion is detected, before falling back to the continuous setting
- Multi-speed operation handles demanding spot ventilation needs, but can also pull double-duty as a great continuous ventilation solution to meet today™s stringent requirements
- ULTRASilent™ with QStream™ sound technology results in operation at less than 0.3 Sones, the quietest sound rating attainable for an environment that is so quiet
- ULTRAQuick™ installation technology uses an exclusive telescoping mounting frame with pre-installed screws, snap-in housing, snap-in blower and an inside-out mounting duct connector that are the fastest, easiest, most universal installation
- Retrofit installations can be done entirely from the room-side no attic access required, this means a faster, easier installation
- Unique telescoping mounting frame can be placed and fastened through drywall hole because it expands from 14 to 24 in and fits any type of joist, I-Joist or truss construction for a "no guesswork" installation to make the work fast and easy
- Snap-in housing and blower further simplify installation since can hear and feel when they are properly seated, easy-to-position carriage allows housing location adjustment between joists so can control the correct ceiling placement
- ULTRASmart™ DC motor and control technology provides energy efficiency almost 10 times greater than energy star requirements and maintains rated power (cfm) in nearly every installation
- UL listed for use over tubs and showers with a GFCI circuit, can capture the steam before it spreads throughout the room by locating your fan exactly where need it the most
- Compatible with radiation damper RDFU which helps prevent flame and heat from spreading to other areas in multi-level buildings
- Can be used to comply with ASHRAE 62.2 and CALGreen
