MICRO CO27B-200 200A/120-208V 3PH CA/ DISJ 200A
MFR Part #: CO27B-200
SKU #: 1264303
Brand: ABB | Microlectric®
UPC: 624871002668

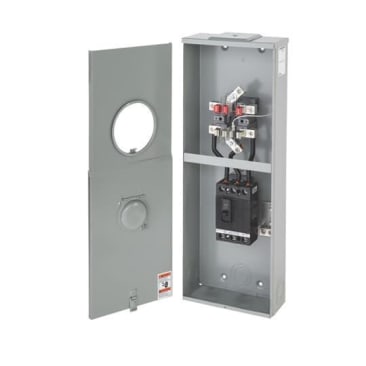

Thomas & Betts Microlectric® CO27B-200 Left Hand Polyphase Weatherproof Meter Socket With Screw Type Ring, QJ Circuit Breaker, 120 to 208 VAC, 200 A, 3 Phase, NEMA 3R Enclosure
For overhead installation and polyphase service entrance
CSA File No. 27716
Product Details
Attributes
Features
Resources
Thomas & Betts Microlectric® Meter Socket, Left Hand Polyphase Weatherproof, Series: CO27, 120 to 208 VAC, 200 A, 3 Phase, Overhead Feed, 2 AWG to 250 kcmil Wire, Line/Load Terminal, NEMA 3R Enclosure, 32-3/4 in H x 11-13/16 in W x 5-7/16 in D Dimensions
Amperage Rating:
200 A
Country Of Origin:
Canada
Enclosure Type:
NEMA 3R
Dimensions:
32-3/4 in H x 11-13/16 in W x 5-7/16 in D
Feed Type:
Overhead
Phase:
3
Series:
CO27
Terminal Type:
Line/Load
Type:
Left Hand Polyphase Weatherproof
Voltage Rating:
120 to 208 VAC
Wire Size:
2 AWG to 250 kcmil
- Made or Assembled in Canada
- Complete with Siemens QJ 200 A 3-pole 10 kA rated circuit breaker
- Aluminum tunnel type connectors
- Larger hub opening requires use of 3 in, 3-1/2 in or 4 in hubs unless BS052 adapter plate is used
- Factory installed 3-pole circuit breaker, 10000 A rms interrupting capacity
Product Details
Thomas & Betts Microlectric® Meter Socket, Left Hand Polyphase Weatherproof, Series: CO27, 120 to 208 VAC, 200 A, 3 Phase, Overhead Feed, 2 AWG to 250 kcmil Wire, Line/Load Terminal, NEMA 3R Enclosure, 32-3/4 in H x 11-13/16 in W x 5-7/16 in D Dimensions
Attributes
Amperage Rating: 200 A
Country Of Origin: Canada
Enclosure Type: NEMA 3R
Dimensions: 32-3/4 in H x 11-13/16 in W x 5-7/16 in D
Feed Type: Overhead
Phase: 3
Series: CO27
Terminal Type: Line/Load
Type: Left Hand Polyphase Weatherproof
Voltage Rating: 120 to 208 VAC
Wire Size: 2 AWG to 250 kcmil
Features
- Made or Assembled in Canada
- Complete with Siemens QJ 200 A 3-pole 10 kA rated circuit breaker
- Aluminum tunnel type connectors
- Larger hub opening requires use of 3 in, 3-1/2 in or 4 in hubs unless BS052 adapter plate is used
- Factory installed 3-pole circuit breaker, 10000 A rms interrupting capacity
