MICRO BDC2-VAILBC 200A/600V 2P200A UG LH BC HYDRO METER BASE
MFR Part #: BDC2-VAILBC
SKU #: 1135289
Brand: ABB | Microlectric®
UPC: 624871007809

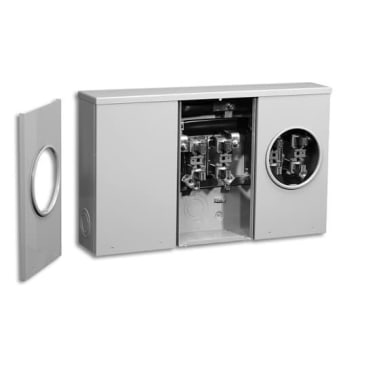

Thomas & Betts Microlectric® BDC2-VAILBC 2-Position Left Hand Weatherproof Meter Socket With Screw Type Sealing Rings, Blank Compartment, 600 VAC, 200 A, 1 Phase, NEMA 3R Enclosure
Underground Service Applications
CSA File No. 27716
Product Details
Attributes
Features
Resources
Thomas & Betts Microlectric® Meter Socket, 2-Position Left Hand Weatherproof, Series: BDC, 600 VAC, 200 A, 1 Phase, Underground Feed, 4 Jaws, 6 AWG to 250 kcmil Wire, Line/Load Lug Terminal, NEMA 3R Enclosure, 20-3/4 in H x 26-1/4 in W x 5-1/4 in D Dimensions
Amperage Rating:
200 A
Country Of Origin:
Canada
Dimensions:
20-3/4 in H x 26-1/4 in W x 5-1/4 in D
Enclosure Type:
NEMA 3R
Feed Type:
Underground
Number of Jaws:
4
Phase:
1
Series:
BDC
Terminal Type:
Line/Load Lug
Type:
2-Position Left Hand Weatherproof
Voltage Rating:
600 VAC
Wire Size:
6 AWG to 250 kcmil
- Made or Assembled in Canada
- Single 1/2 in studs to accommodate compression lugs
- Aluminum tunnel type connectors for load sides
- Factory pre-bussed from main lugs to each position
Product Details
Thomas & Betts Microlectric® Meter Socket, 2-Position Left Hand Weatherproof, Series: BDC, 600 VAC, 200 A, 1 Phase, Underground Feed, 4 Jaws, 6 AWG to 250 kcmil Wire, Line/Load Lug Terminal, NEMA 3R Enclosure, 20-3/4 in H x 26-1/4 in W x 5-1/4 in D Dimensions
Attributes
Amperage Rating: 200 A
Country Of Origin: Canada
Dimensions: 20-3/4 in H x 26-1/4 in W x 5-1/4 in D
Enclosure Type: NEMA 3R
Feed Type: Underground
Number of Jaws: 4
Phase: 1
Series: BDC
Terminal Type: Line/Load Lug
Type: 2-Position Left Hand Weatherproof
Voltage Rating: 600 VAC
Wire Size: 6 AWG to 250 kcmil
Features
- Made or Assembled in Canada
- Single 1/2 in studs to accommodate compression lugs
- Aluminum tunnel type connectors for load sides
- Factory pre-bussed from main lugs to each position
