MICRO BS42-V 2 POS/200AMP HOR MTR TROUGH
MFR Part #: BS42-V
SKU #: 0710762
Brand: ABB | Microlectric®
UPC: 624871032306

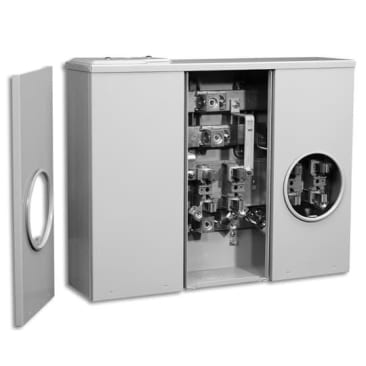

Microlectric® BS42-V 2-Position Meter Socket With Blank Compartment, 600 VAC, 400 A, 1 Phase, NEMA 3R Enclosure
Screw Rings
For combination overhead/underground service
CSA File No. 27716
Product Details
Attributes
Features
Resources
Microlectric® Meter Socket, 2-Position, Series: BS4, 600 VAC, 400 A, 1 Phase, Overhead/Underground Feed, 4 Jaws, 4 AWG to 600 kcmil, 1/0 AWG to 250 kcmil Wire, Adapter Plate, NEMA 3R, 23-3/8 in H x 26-1/4 in W x 5-5/16 in D
Amperage Rating:
400 A
Country Of Origin:
Canada
Dimensions:
23-3/8 in H x 26-1/4 in W x 5-5/16 in D
Enclosure Type:
NEMA 3R
Feed Type:
Overhead/Underground
Hub Type:
Adapter Plate
Number of Jaws:
4
Phase:
1
Series:
BS4
Type:
2-Position
Voltage Rating:
600 VAC
Wire Size:
4 AWG to 600 kcmil, 1/0 AWG to 250 kcmil
- Supplied with screw type rings
- Left hand entry
- 2-Position
- Weatherproof enclosure
- Multiple position with blank compartment 200 A per position 400 A (main lugs) 600 V max
- Factory prebussed from main lugs to each position
- Aluminum tunnel type connectors for both load and line sides
- (1) 4 AWG to 600 kcmil/(2)1/0 AWG to 250 kcmil (line)/6 AWG to 250 kcmil (load)
- Larger hub opening requires use of 3 in, 3-1/2 in or 4 in hubs unless BS052 adapter plate is used
Product Details
Microlectric® Meter Socket, 2-Position, Series: BS4, 600 VAC, 400 A, 1 Phase, Overhead/Underground Feed, 4 Jaws, 4 AWG to 600 kcmil, 1/0 AWG to 250 kcmil Wire, Adapter Plate, NEMA 3R, 23-3/8 in H x 26-1/4 in W x 5-5/16 in D
Attributes
Amperage Rating: 400 A
Country Of Origin: Canada
Dimensions: 23-3/8 in H x 26-1/4 in W x 5-5/16 in D
Enclosure Type: NEMA 3R
Feed Type: Overhead/Underground
Hub Type: Adapter Plate
Number of Jaws: 4
Phase: 1
Series: BS4
Type: 2-Position
Voltage Rating: 600 VAC
Wire Size: 4 AWG to 600 kcmil, 1/0 AWG to 250 kcmil
Features
- Supplied with screw type rings
- Left hand entry
- 2-Position
- Weatherproof enclosure
- Multiple position with blank compartment 200 A per position 400 A (main lugs) 600 V max
- Factory prebussed from main lugs to each position
- Aluminum tunnel type connectors for both load and line sides
- (1) 4 AWG to 600 kcmil/(2)1/0 AWG to 250 kcmil (line)/6 AWG to 250 kcmil (load)
- Larger hub opening requires use of 3 in, 3-1/2 in or 4 in hubs unless BS052 adapter plate is used
