MICRO CT113-L Image 1
COO Canada

MICRO CT113-L 20A 13 JAM METER SOCKET TRANS RATED

MFR Part #: CT113-L
SKU #: 1111599
Brand: ABB | Microlectric®
UPC: 624871006581

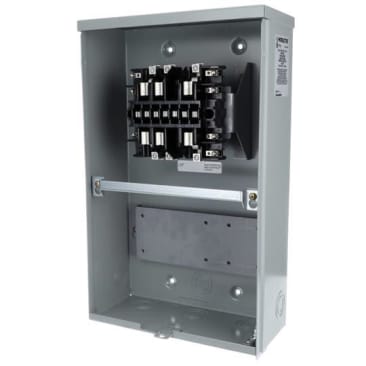

Thomas & Betts Microlectric® CT113-L Transformer Rated Meter Socket With Screw Type Ring, 600 V AC, 20 A, 1 Phase
Underground Service Applications
CSA 27716 / CSA 27716

Thomas & Betts Microlectric® Transformer Rated Meter Socket, Series: CT Series, 600 V AC, 20 A, 1 Phase, Underground Feed, 13 Jaws, 14 to 10 AWG Wire, Line/Load Terminal, 19-1/8 in H x 11-13/16 in W x 5-7/16 in D Dimensions

Made or assembled in Canada.

Product Details

Thomas & Betts Microlectric® Transformer Rated Meter Socket, Series: CT Series, 600 V AC, 20 A, 1 Phase, Underground Feed, 13 Jaws, 14 to 10 AWG Wire, Line/Load Terminal, 19-1/8 in H x 11-13/16 in W x 5-7/16 in D Dimensions

Made or assembled in Canada.

Attributes

Amperage Rating: 20 A
Country Of Origin: Canada
Dimensions: 19-1/8 in H x 11-13/16 in W x 5-7/16 in D
Feed Type: Underground
Number of Jaws: 13
Phase: 1
Series: CT Series
Terminal Type: Line/Load
Voltage Rating: 600 V AC
Wire Size: 14 to 10 AWG

Features

  • Tunnel type connector for both load and line sides
  • Meter compartment cover overlaps lower test switch compartment cover, insertion of meter securely holds upper cover in place by means of a catch
  • A removable mounting bridge is provided for fastening test switch
  • BC Hydro approved with SWL cover with enlarged padlock hole

Resources

Specification Sheet
