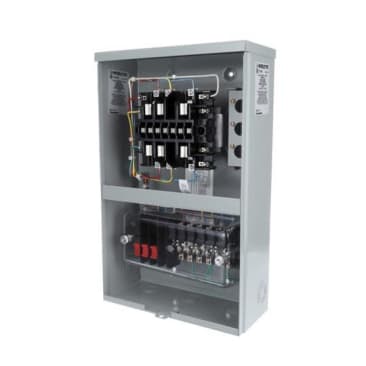

MICRO CT113-SWL 20 AMP 13 JAW METER SOCKET C/W TEST SWITCH
MFR Part #: CT113-SWL
SKU #: 1008991
Brand: ABB | Microlectric®
UPC: 624871002477
Thomas & Betts Microlectric® CT113-SWL Pre-Wired Weatherproof Transformer Rated Meter Socket With Test Switch, 600 VAC, 20 A, 1 Phase, NEMA 3R Enclosure
Underground Service Applications
CSA File No. 27716
Product Details
Attributes
Features
Resources
Thomas & Betts Microlectric® Transformer Rated Meter Socket, Pre-Wired Weatherproof, Series: CT-SWL, 600 VAC, 20 A, 1 Phase, Underground Feed, 13 Jaws, 14 to 10 AWG Wire, Line/Load Terminal, NEMA 3R Enclosure, 19-1/8 in H x 11-13/16 in W x 5-7/16 in D Dimensions
Amperage Rating:
20 A
Country Of Origin:
Canada
Dimensions:
19-1/8 in H x 11-13/16 in W x 5-7/16 in D
Enclosure Type:
NEMA 3R
Feed Type:
Underground
Number of Jaws:
13
Phase:
1
Series:
CT-SWL
Terminal Type:
Line/Load
Type:
Pre-Wired Weatherproof
Voltage Rating:
600 VAC
Wire Size:
14 to 10 AWG
- Made or Assembled in Canada
- Tunnel type connector for both load and line sides
- Lower test switch compartment cover securely held by upper cover and a out device with an enlarged pad hole (3/8 in Dia)
- Units are prewired from base to test switch
- Furnished with tamper resistant device for meter ring
- Factory pre-wired unit with lockout device on bottom door
Product Details
Thomas & Betts Microlectric® Transformer Rated Meter Socket, Pre-Wired Weatherproof, Series: CT-SWL, 600 VAC, 20 A, 1 Phase, Underground Feed, 13 Jaws, 14 to 10 AWG Wire, Line/Load Terminal, NEMA 3R Enclosure, 19-1/8 in H x 11-13/16 in W x 5-7/16 in D Dimensions
Attributes
Amperage Rating: 20 A
Country Of Origin: Canada
Dimensions: 19-1/8 in H x 11-13/16 in W x 5-7/16 in D
Enclosure Type: NEMA 3R
Feed Type: Underground
Number of Jaws: 13
Phase: 1
Series: CT-SWL
Terminal Type: Line/Load
Type: Pre-Wired Weatherproof
Voltage Rating: 600 VAC
Wire Size: 14 to 10 AWG
Features
- Made or Assembled in Canada
- Tunnel type connector for both load and line sides
- Lower test switch compartment cover securely held by upper cover and a out device with an enlarged pad hole (3/8 in Dia)
- Units are prewired from base to test switch
- Furnished with tamper resistant device for meter ring
- Factory pre-wired unit with lockout device on bottom door
