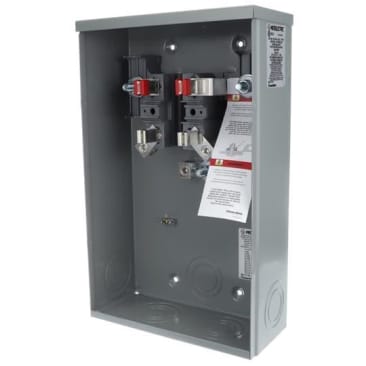

MICRO MO2-V STUD TYPE METER SOCKET
MFR Part #: MO2-V
SKU #: 0710924
Brand: ABB | Microlectric®
UPC: 624871039206
Microlectric® MO2-V Underground Meter Socket With Screw Type Ring, 600 V AC, 200 A, 1 Phase, NEMA 3R Enclosure
Screw Rings
For underground service only
CSA 27716 / CSA 27716
Product Details
Attributes
Features
Resources
Microlectric® Meter Socket, Underground, Series: MO2, 600 V AC, 200 A, 1, Underground Feed, 4 Jaws, 350 kcmil (Line), 6 AWG to 250 kcmil (Load) Wire, NEMA 3R, 19-1/8 in H x 12 in W x 9-5/16 in D
Made or assembled in Canada.
Amperage Rating:200 A
Country Of Origin:Canada
Dimensions:19-1/8 in H x 12 in W x 9-5/16 in D
Enclosure Type:NEMA 3R
Feed Type:Underground
Number of Jaws:4
Phase:1
Voltage Rating:600 V AC
Wire Size:350 kcmil (Line), 6 AWG to 250 kcmil (Load)
- Single 1/2 in studs to accommodate compression lugs 350 kcmil maximum, 6 AWG to 250 kcmil load
- Aluminum tunnel type connectors for load side, 1/2 in studs on line side
- Weatherproof Type 3R enclosure
Product Details
Microlectric® Meter Socket, Underground, Series: MO2, 600 V AC, 200 A, 1, Underground Feed, 4 Jaws, 350 kcmil (Line), 6 AWG to 250 kcmil (Load) Wire, NEMA 3R, 19-1/8 in H x 12 in W x 9-5/16 in D
Made or assembled in Canada.
Attributes
Amperage Rating: 200 A
Country Of Origin: Canada
Dimensions: 19-1/8 in H x 12 in W x 9-5/16 in D
Enclosure Type: NEMA 3R
Feed Type: Underground
Number of Jaws: 4
Phase: 1
Voltage Rating: 600 V AC
Wire Size: 350 kcmil (Line), 6 AWG to 250 kcmil (Load)
Features
- Single 1/2 in studs to accommodate compression lugs 350 kcmil maximum, 6 AWG to 250 kcmil load
- Aluminum tunnel type connectors for load side, 1/2 in studs on line side
- Weatherproof Type 3R enclosure
