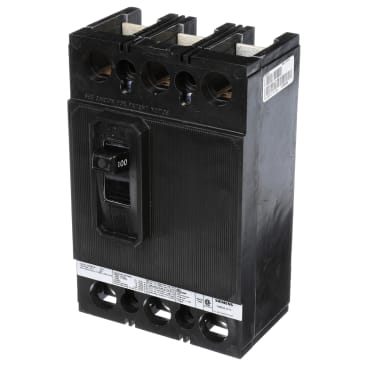

MCCB 3P 240 VAC STD I.C. SIEMENS QJ23B100
MFR Part #: QJ23B100
SKU #: 1115655
Brand: Siemens
UPC: 783643201071
Siemens QJ23B100 Molded Case Circuit Breaker, 240 VAC, 100 A, 10 kA Interrupt, 3 -Pole, Thermal Magnetic Trip
CSA Certified | UL 489
Product Details
Attributes
Siemens Molded Case Circuit Breaker, 100 A, 240 VAC, 60 Hz, 10 kA Interrupt Rating, 3 Poles, 3 ph Phase, Bolt-On Connection, QJ Frame, Thermal Magnetic Trip, Load Side Lug Terminal, 4 AWG to 300 kcmil Wire, 40 deg C, 4-1/2 in Width, 7 in Length, 2.34 in Height
Amperage Rating:100 A
Connection Type:Bolt-On
Frame Type:QJ
Frequency Rating:60 Hz
Height:2.34 in
Interrupt Rating:10 kA
Length:7 in
Number of Poles:3
Phase:3 ph
Temperature Rating:40 deg C
Terminal Type:Load Side Lug
Trip Type:Thermal Magnetic
Voltage Rating:240 VAC
Width:4-1/2 in
Wire Size:4 AWG to 300 kcmil
Product Details
Siemens Molded Case Circuit Breaker, 100 A, 240 VAC, 60 Hz, 10 kA Interrupt Rating, 3 Poles, 3 ph Phase, Bolt-On Connection, QJ Frame, Thermal Magnetic Trip, Load Side Lug Terminal, 4 AWG to 300 kcmil Wire, 40 deg C, 4-1/2 in Width, 7 in Length, 2.34 in Height
Attributes
Amperage Rating: 100 A
Connection Type: Bolt-On
Frame Type: QJ
Frequency Rating: 60 Hz
Height: 2.34 in
Interrupt Rating: 10 kA
Length: 7 in
Number of Poles: 3
Phase: 3 ph
Temperature Rating: 40 deg C
Terminal Type: Load Side Lug
Trip Type: Thermal Magnetic
Voltage Rating: 240 VAC
Width: 4-1/2 in
Wire Size: 4 AWG to 300 kcmil
