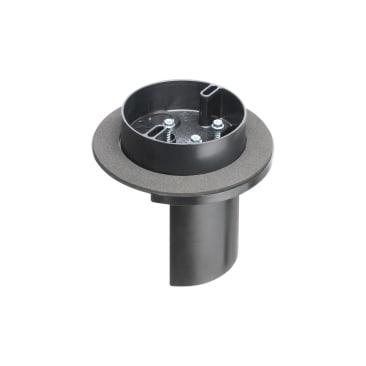

ARLINGTON FB443FDGC FAN BOX DOUBLE DRYWALL JOIST MOUNT
MFR Part #: FB443FD
SKU #: 1120468
Brand: Arlington
UPC: 01899776223
Arlington ONE-BOX™ FB443FD Screw-On Fan/Fixture Vapor Box, Plastic, 28-1/2 cu-in Capacity, 5.933 in H
1 Year
For installing fan/fixture on ceilings with double drywall
UL File No. E170558 | CSA File No. E170558
Product Details
Attributes
Features
Resources
Arlington ONE-BOX™ Fan/Fixture Vapor Box, Screw-On, 4.227 in Diameter, L-Shape Shape, Threaded Mounting, Side Mounting, 28-1/2 cu-in Capacity, Plastic, Black, 5.933 in H Dimensions
Capacity:28-1/2 cu-in, 28.5 cu-in
Color:Black
Diameter:4.227 in
Dimensions:5.933 in H
Material:Plastic
Mounting Type:Threaded, Ceiling
Box Material:Plastic
Length:6-1/4 in
Mounting Orientation:Side
Number of Knockouts:3
Shape:Square, L-Shape
Type:Screw-On
Width:6-1/8 in
- Our economical L-shaped fan/fixture boxes mount securely to joist with a shipped in-place center screw
- Styles for single or double drywall
- Vapor barrier prevents air infiltration in bracket and box
- N-m cable connectors and flange with gasket material already installed
- Installation screws ship captive
- 2 hr fire rating
- Non-conductive plastic
- 70 lb fan and 200 lb fixture rated
- Flange forms a protective barrier against air infiltration
