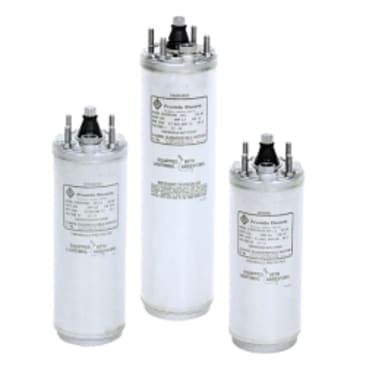

2WIRE 3/4HP 230V 60HZ SPR SS MOTOR LITTLE GIANT 2445079004S
MFR Part #: 2445079004S
SKU #: 1154357
Brand: Franklin Electric
UPC: 400006454676
Franklin Electric 2445079004S 2-Wire Submersible Pump Motor, TENV Enclosure, 3/4 hp, 230 VAC, 60 Hz, 1 ph Phase, 3450 rpm Speed
For dependable operation in 4 in diameter or larger water wells
ANSI/NSF 61 | CSA Certified | UL 778
Product Details
Attributes
Features
Resources
Franklin Electric Submersible Pump Motor, 2-Wire, Application Type: Submersible Pump Motors, 3/4 hp, 230 VAC, 6.8 A, 60 Hz, 1 ph, 3450 rpm, TENV, CCWSE, Service Factor: 1.5, Thrust Bearing, 86 deg F, 3-3/4 in Dia x 10-5/8 in H
Amperage Rating:6.8 A
Bearing Type:Thrust
Dimensions:3-3/4 in Dia x 10-5/8 in H
Frequency Rating:60 Hz
Phase:1
Temperature Rating:86 deg F
Voltage Rating:230 V AC
Application Type:Submersible Pump Motors
Enclosure Type:TENV
Horsepower:3/4 hp
Rotation:CCWSE
Service Factor:1.5
Speed:3450 rpm
Type:2-Wire
- Corrosion resistant stainless steel exterior
- Stainless steel splined shaft
- Hermetically sealed windings
- StatorShield™ resin system
- Filter check valve
- Water lubrication
- Kingsbury-type thrust bearing
- Pressure-equalizing diaphragm
- Built-in lightning arresters (all single-phase, 200 and 300 V 3-phase)
- Removable Water-Bloc™ lead
- Industry standard NEMA mounting dimensions
- Flow inducer sleeve not required in water up to 86 deg F for motors through 2 hp
- 2-wire motors are split-phase designs with integral starting components and do not require a control box
- They feature Franklin's patented 2-wire BIAC starting switch which provides reverse impact torque to aid starting in adverse environments and prevents extreme fast cycling (e.g. water logged tank)
- Super stainless construction
Product Details
Franklin Electric Submersible Pump Motor, 2-Wire, Application Type: Submersible Pump Motors, 3/4 hp, 230 VAC, 6.8 A, 60 Hz, 1 ph, 3450 rpm, TENV, CCWSE, Service Factor: 1.5, Thrust Bearing, 86 deg F, 3-3/4 in Dia x 10-5/8 in H
Attributes
Amperage Rating: 6.8 A
Bearing Type: Thrust
Dimensions: 3-3/4 in Dia x 10-5/8 in H
Frequency Rating: 60 Hz
Phase: 1
Temperature Rating: 86 deg F
Voltage Rating: 230 V AC
Application Type: Submersible Pump Motors
Enclosure Type: TENV
Horsepower: 3/4 hp
Rotation: CCWSE
Service Factor: 1.5
Speed: 3450 rpm
Type: 2-Wire
Features
- Corrosion resistant stainless steel exterior
- Stainless steel splined shaft
- Hermetically sealed windings
- StatorShield™ resin system
- Filter check valve
- Water lubrication
- Kingsbury-type thrust bearing
- Pressure-equalizing diaphragm
- Built-in lightning arresters (all single-phase, 200 and 300 V 3-phase)
- Removable Water-Bloc™ lead
- Industry standard NEMA mounting dimensions
- Flow inducer sleeve not required in water up to 86 deg F for motors through 2 hp
- 2-wire motors are split-phase designs with integral starting components and do not require a control box
- They feature Franklin's patented 2-wire BIAC starting switch which provides reverse impact torque to aid starting in adverse environments and prevents extreme fast cycling (e.g. water logged tank)
- Super stainless construction
