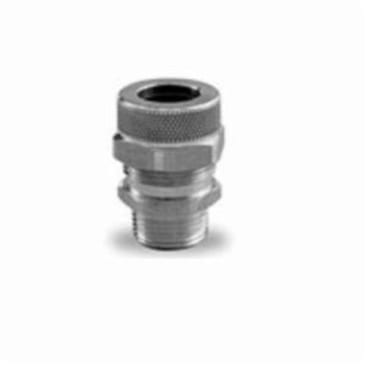

TECHSPAN RSR-106 CORD GRIP ALUMINUM 1/2IN 1/4-3/8
Product Details
Attributes
Features
Resources
Techspan® Tuff-Seal™ Cord Connector, Straight Grip, Series: RSR, 1/2 in Trade, 2/3/4 Conductors, 0.312 to 0.375 in Cable Openings, SJ/SJTO/SJO to S/STO/SO Cable, Cord Threaded, Aluminum, -40 to 300 deg C
Tuff Seal™ RSR series aluminum cord grips are UL listed and CSA certified for use in both indoor and outdoor applications to prevent cable pullout control arc of bend, and to provide a tight seal against environmental elements such as dirt, moisture and coolants. The breadth of the line encompasses conduit sizes from 1/4 in to 3 in with fittings offered in machined aluminum, nickel plated aluminum, steel, stainless steel, nylon and Valox™®.
- A unique design with a combination tightening surface that includes both a hex area and a knurled surface
- Optional embedded Viton® O-ring ensures a watertight and corrosion-resistant seal
- Anti-friction washer that fits between the nut and bushing for easier compression
- 0.859 to 0.906 in knockout hole size
- 21.3 mm thread diameter, 1.81 mm pitch
- UL 94V-2 flammability rating
- 18 to 14 AWG conductor range
Product Details
Techspan® Tuff-Seal™ Cord Connector, Straight Grip, Series: RSR, 1/2 in Trade, 2/3/4 Conductors, 0.312 to 0.375 in Cable Openings, SJ/SJTO/SJO to S/STO/SO Cable, Cord Threaded, Aluminum, -40 to 300 deg C
Tuff Seal™ RSR series aluminum cord grips are UL listed and CSA certified for use in both indoor and outdoor applications to prevent cable pullout control arc of bend, and to provide a tight seal against environmental elements such as dirt, moisture and coolants. The breadth of the line encompasses conduit sizes from 1/4 in to 3 in with fittings offered in machined aluminum, nickel plated aluminum, steel, stainless steel, nylon and Valox™®.
Attributes
Features
- A unique design with a combination tightening surface that includes both a hex area and a knurled surface
- Optional embedded Viton® O-ring ensures a watertight and corrosion-resistant seal
- Anti-friction washer that fits between the nut and bushing for easier compression
- 0.859 to 0.906 in knockout hole size
- 21.3 mm thread diameter, 1.81 mm pitch
- UL 94V-2 flammability rating
- 18 to 14 AWG conductor range
