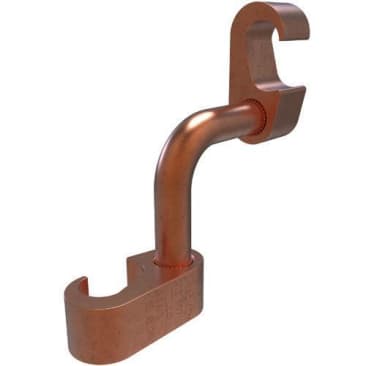

ILSCO GGA-3 FIG.6 250KCMIL-2STR TAP 250KCMIL-2STR
MFR Part #: GGA-3
SKU #: 1123083
Brand: ILSCO®
UPC: 783669260045
ILSCO® ClearChoice® GGA-3 Type GGA Grounding Grid Connector, 2 AWG to 250 kcmil Conductor, 1/2 to 5/8 in Rod, Figure 6, Copper
For grounding and bonding for direct burial in earth or concrete
CSA LR5465 | UL 667P/467/E34440 | PROP65: it is not known to contain any chemicals associated with this regulation
Product Details
Attributes
Features
Resources
ILSCO® ClearChoice® Grounding Grid Connector, Type GGA, 2 AWG to 250 kcmil Conductor, 1/2 to 5/8 in Rod, Figure 6, 600 V AC Voltage Rating, Copper, 2.5 in L x 1.66 in W x 0.75 in THK
Conductor Size:2 AWG to 250 kcmil
Country Of Origin:Mexico
Dimensions:2.5 in L x 1.66 in W x 0.75 in THK
Material:Copper
Rod Size:1/2 to 5/8 in
Shape:Figure 6
Specifications:600 V AC Voltage Rating
Type:Type GGA
- Manufactured from high strength copper alloy provides maximum conductivity and eliminates the possibility of corrosion
- Clearly marked with wire size and die index provides easy identification and tooling recommendation
- Range taking reduces inventory
- Pre-filled with DE-OX® oxide inhibiting compound prevents oxides from forming
- Connector can be rotated to adjust for alignment of grid
- For copper conductor only
- Non-hazardous installation - can be installed in all types of weather with no need for protective equipment or clothing
- Does not produce heat or dangerous particles
- Temperature rating 90 deg C ensures reliability
- 2 AWG stranded to 250 kcmil side B tap conductor (cable to cable and cable to ground rod)
- #3 to 4 side B rebar
- (1) 997 main and (1) 997 tap die index
- Connector can be adjusted prior to installation permits adjustments to be made for misaligned cross grids
