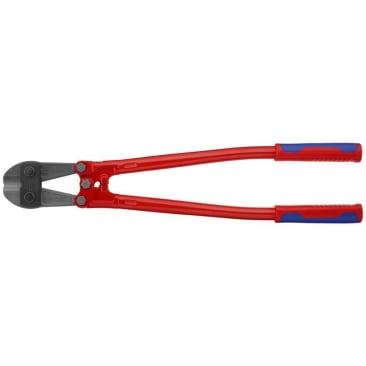

KNIPEX 71 72 610 24IN LARGE BOLT CUTTERS

MFR Part #: 71 72 610
SKU #: 1114122
Brand: Knipex®
UPC: 843221008192
Knipex® CoBolt® 71 72 610 Large Bolt Cutter, 9 mm Dia 19 HRC, 8 mm Dia 40 HRC, 7 mm Dia 48 HRC Hardness Wires Cutting, 24 in OAL, Center Cut, Chrome Vanadium Steel Jaw
DIN ISO 5743

Knipex® CoBolt® Bolt Cutter, Large, Cutting Capacity: 9 mm Dia 19 HRC, 8 mm Dia 40 HRC, 7 mm Dia 48 HRC Hardness Wires, Chrome Vanadium Steel Cutting Edge, Center Cut, Chrome Vanadium Steel Jaw, Chrome Vanadium Steel Blade, Applicable Materials: Hard, Medium and Soft Materials, 24 in Overall Length, Ergonomic Handle, Steel Tube Handle, Gray Atramentized

Product Details

Knipex® CoBolt® Bolt Cutter, Large, Cutting Capacity: 9 mm Dia 19 HRC, 8 mm Dia 40 HRC, 7 mm Dia 48 HRC Hardness Wires, Chrome Vanadium Steel Cutting Edge, Center Cut, Chrome Vanadium Steel Jaw, Chrome Vanadium Steel Blade, Applicable Materials: Hard, Medium and Soft Materials, 24 in Overall Length, Ergonomic Handle, Steel Tube Handle, Gray Atramentized

Attributes

Applicable Materials: Hard, Medium and Soft Materials
Blade Material: Chrome Vanadium Steel
Country Of Origin: Germany
Cut Type: Center Cut
Cutting Capacity: 9 mm Dia 19 HRC, 8 mm Dia 40 HRC, 7 mm Dia 48 HRC Hardness Wires
Cutting Edge Material: Chrome Vanadium Steel
Finish: Gray Atramentized
Handle Material: Steel Tube
Handle Type: Ergonomic
Jaw Material: Chrome Vanadium Steel
Overall Length: 24 in
Type: Large

Features

  • Cutting capacity up to 48 HRC hardness
  • Robust cutting edges are additionally induction hardened, cutting edge hardness approximately 62 HRC
  • Forged-in stopper with comfortable shock absorber
  • Good access due to very flat construction of head and joint area
  • Ergonomically angled handles to minimize effort
  • Sturdy non-slip two color dual component handle sleeves
  • Precise adjustment (12 positions) by eccentric bolt
  • High cutting performance with minimum effort due to optimum co-ordination of the cutting edge angle and transmission ratio
  • Bolted cutter head, replaceable
  • Chrome vanadium heavy duty steel, forged, multi-stage oil hardened
  • Joint - special tool steel, forged
  • Handles - steel tube, powder coated
