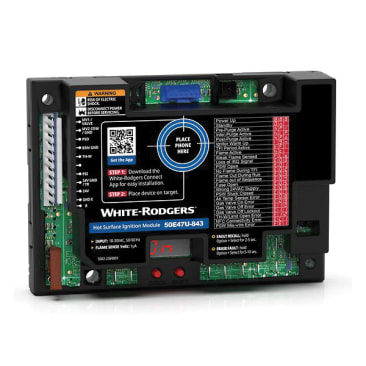

WHITE RODGERS 50E47U-843 UNIVERSAL HOT SURFACE IGNITION BOARD
MFR Part #:Â 50E47U-843
SKU #:Â 1282664
Brand: White-Rodgers™
UPC:Â 786710572142
WHITE-RODGERS™ 50E47U-843 Hot Surface Ignition, 18-30 V, 24/120/240 V
1 Year
CSA Listed
Product Details
Attributes
Features
Resources
WHITE-RODGERS™ Hot Surface Ignition, 18-30 V, 24/120/240 V, 800 mA, 45 s Pre Purge Time, Additional Information: Universal, -40 to 176 deg F Temperature Rating, 5 to 95% Relative Humidity
Universal hot surface ignition module. Designed to replace 24V, 120V or 240V non-integrated Hot Surface Ignition (HSI) modules in a wide variety of heating applications.
Amperage Rating:
800 mA
Additional Information:
Universal, -40 to 176 deg F Temperature Rating, 5 to 95% Relative Humidity
Pre Purge Time:
45 s
Voltage Rating:
18-30 V, 24/120/240 V
- Compatible with 24V, 120V and 240V ignitors
- Universal replacement for Fenwal, Honeywell, UTEC, ICM, White-Rodgers, and Robertshaw
- Energizes an inducer motor and monitors a pressure switch
- Use with the White-Rodgers Connect app to simplify configuration without power, prior to install
- See operation status, diagnostics and real time flame current with the on-board digital display which also provides alternate configuration
- Easy-install harness converts old board wiring
- Use F67-8535 (sold separately) to maintain temperature without an external thermostat in infrared and tube heaters
Product Details
WHITE-RODGERS™ Hot Surface Ignition, 18-30 V, 24/120/240 V, 800 mA, 45 s Pre Purge Time, Additional Information: Universal, -40 to 176 deg F Temperature Rating, 5 to 95% Relative Humidity
Universal hot surface ignition module. Designed to replace 24V, 120V or 240V non-integrated Hot Surface Ignition (HSI) modules in a wide variety of heating applications.
Attributes
Amperage Rating:Â 800 mA
Additional Information:Â Universal, -40 to 176 deg F Temperature Rating, 5 to 95% Relative Humidity
Pre Purge Time:Â 45 s
Voltage Rating:Â 18-30 V, 24/120/240 V
Features
- Compatible with 24V, 120V and 240V ignitors
- Universal replacement for Fenwal, Honeywell, UTEC, ICM, White-Rodgers, and Robertshaw
- Energizes an inducer motor and monitors a pressure switch
- Use with the White-Rodgers Connect app to simplify configuration without power, prior to install
- See operation status, diagnostics and real time flame current with the on-board digital display which also provides alternate configuration
- Easy-install harness converts old board wiring
- Use F67-8535 (sold separately) to maintain temperature without an external thermostat in infrared and tube heaters
