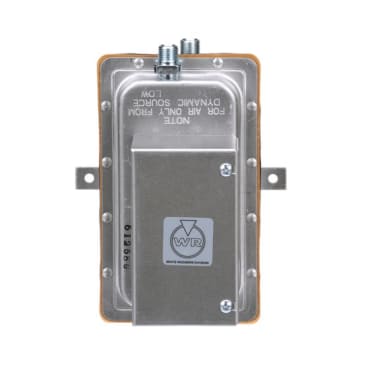

WHITE RODGERS 770-3 AIR SWITCH
MFR Part #:Â 770-3
SKU #:Â 1030872
Brand: White-Rodgers™
UPC:Â 686334546355
White-Rodgers™ 770-3 770 Dual Purpose Air Switch, 1/2 psi Pressure, Electrical Ratings: 15 A, SPDT Switch
CSA Certified | UL Listed
Product Details
Attributes
Features
Resources
White-Rodgers™, 770-3, Air Switch, Dual Purpose, Series: 770, 1/2 psi Pressure, 15 A Electrical Rating, SPDT Switch, -40 to 180 deg F, 3-1/4 in Width, 3-3/16 in Depth, 6-1/8 in Height
Depth:
3-3/16 in
Electrical Ratings:
15 A
Height:
6-1/8 in
HP Rating:
1/2 hp
Pressure Rating:
.5 psi, 1/2 psi
Series:
770, 770 Series
Setpoint:
0.05 to 12 in-WC
Switch Type:
SPDT
Switching Action:
SPDT
Temperature Rating:
-40 to 180 deg F
Type:
Dual Purpose
Width:
3-1/4 in
- Design eliminates fluttering or malfunction due to shock or vibration normally encountered with sail switches
- Furnished with one 12 in piece 1/4 in O.D. flexible tubing, nuts and ferrules
- Wide operating range
- Can be mounted in any position except upside down
- Enclosed diaphragm
- Responds to positive, negative or differential air pressure
Product Details
White-Rodgers™, 770-3, Air Switch, Dual Purpose, Series: 770, 1/2 psi Pressure, 15 A Electrical Rating, SPDT Switch, -40 to 180 deg F, 3-1/4 in Width, 3-3/16 in Depth, 6-1/8 in Height
Attributes
Depth:Â 3-3/16 in
Electrical Ratings:Â 15 A
Height:Â 6-1/8 in
HP Rating:Â 1/2 hp
Pressure Rating:Â .5 psi, 1/2 psi
Series:Â 770, 770 Series
Setpoint:Â 0.05 to 12 in-WC
Switch Type:Â SPDT
Switching Action:Â SPDT
Temperature Rating:Â -40 to 180 deg F
Type:Â Dual Purpose
Width:Â 3-1/4 in
Features
- Design eliminates fluttering or malfunction due to shock or vibration normally encountered with sail switches
- Furnished with one 12 in piece 1/4 in O.D. flexible tubing, nuts and ferrules
- Wide operating range
- Can be mounted in any position except upside down
- Enclosed diaphragm
- Responds to positive, negative or differential air pressure
