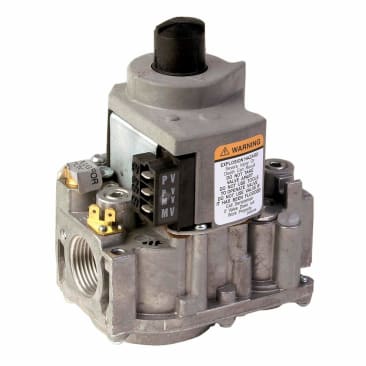

HONEYWELL VR8304P4256T/U GAS CONTROL VALVE FOR RHEEM SYSTEMS
MFR Part #: VR8304P4256T/U
SKU #: 1180915
Brand: Honeywell
UPC: 085267993982
Resideo VR8304P4256T/U Low Voltage Slow Opening Combination Gas Control, 24 VAC, 0.7 A, Intermittent Pilot Ignition, 0.5 psi
Inlet Screen and 1-Stage Natural to LP Gas Conversion Kit, Safety Shutoff, Manual Valve, (2) Automatic Operators, Pressure Regulator and Pilot Adjustment
UP-70-69A American Gas Association Design Certificate | UP-70-69A Canadian Gas Association Design Certificate | CSA 112395 | UL MCCZ2.MH5323
Product Details
Attributes
Features
Resources
Resideo Combination Gas Control, Low Voltage Slow Opening, Series: VR8304, 24 VAC, 0.7 A, Intermittent Pilot Ignition, 0.5 psi, -40 to 175 deg F, Vertical Mount, 4-1/16 in W x 2-11/16 in D
Combination gas control for use in 24 VAC gas-fired, intermittent pilot appliances with capacities from 30 to 415 cfh.
Amperage Rating:.7 A
Country Of Origin:Mexico
Dimensions:4-1/16 in W x 2-11/16 in D
Ignition Type:Intermittent Pilot
Mounting Type:Vertical
Pressure Rating:.5 psi
Series:VR8304
Temperature Rating:-40 to 175 deg F
Type:Low Voltage Slow Opening
Voltage Rating:24 VAC
- Compact size
- Solenoid operated first automatic valve opens on thermostat call for heat, closes when call for heat ends
- Diaphragm-operated second automatic valve opens under control of regulator, closes if gas or power supply is interrupted
- Meet codes requiring dual safety shutoff
- Natural to LP and LP to natural conversion kits available for standard and slow opening gas valves
- All adjustments, wiring connections and pilot outlet are accessible from top of control
- Adjustable regulator effectively maintains almost constant gas output pressure under wide fluctuations in gas supply pressure
- Compatible with ECO connector
- ON-OFF lighting sequence
Product Details
Resideo Combination Gas Control, Low Voltage Slow Opening, Series: VR8304, 24 VAC, 0.7 A, Intermittent Pilot Ignition, 0.5 psi, -40 to 175 deg F, Vertical Mount, 4-1/16 in W x 2-11/16 in D
Combination gas control for use in 24 VAC gas-fired, intermittent pilot appliances with capacities from 30 to 415 cfh.
Attributes
Amperage Rating: .7 A
Country Of Origin: Mexico
Dimensions: 4-1/16 in W x 2-11/16 in D
Ignition Type: Intermittent Pilot
Mounting Type: Vertical
Pressure Rating: .5 psi
Series: VR8304
Temperature Rating: -40 to 175 deg F
Type: Low Voltage Slow Opening
Voltage Rating: 24 VAC
Features
- Compact size
- Solenoid operated first automatic valve opens on thermostat call for heat, closes when call for heat ends
- Diaphragm-operated second automatic valve opens under control of regulator, closes if gas or power supply is interrupted
- Meet codes requiring dual safety shutoff
- Natural to LP and LP to natural conversion kits available for standard and slow opening gas valves
- All adjustments, wiring connections and pilot outlet are accessible from top of control
- Adjustable regulator effectively maintains almost constant gas output pressure under wide fluctuations in gas supply pressure
- Compatible with ECO connector
- ON-OFF lighting sequence
