HONEYWELL VP512A1767 Image 1

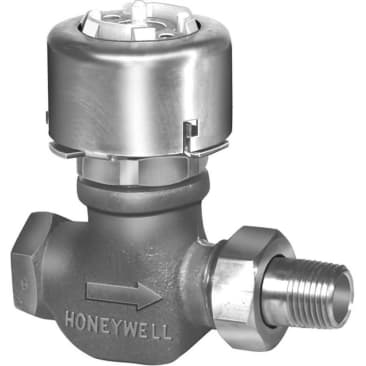

HONEYWELL VP512A1767 1-1/4IN PNEUMATIC VALVE

MFR Part #: VP512A1767
SKU #: 1172013
Brand: Honeywell
UPC: 085267111096
Honeywell VP512A Series VP512A1767 Ventilator Valve, 1-1/4 in Nominal, FNPT x Male, 2-Port/Way, Bronze Body

Honeywell Ventilator Valve, VP512A Series, 1-1/4 in Nominal, FNPT x Male Connection, Straight-Through, 150 psi, Rotatable Actuator, 6-1/4 in Inlet to Outlet Length, Number of Ports/Ways: 2, Bronze Body, Brass Seat, Brass Trim, PTFE Packing, PTFE Softgoods, 160 deg F, 5-1/8 x 7-11/16 in

VP512A unit ventilator valves are normally open, single seated, straight through or angled globe valves for proportional control of either steam or hot water in unit ventilators.

Product Details

Honeywell Ventilator Valve, VP512A Series, 1-1/4 in Nominal, FNPT x Male Connection, Straight-Through, 150 psi, Rotatable Actuator, 6-1/4 in Inlet to Outlet Length, Number of Ports/Ways: 2, Bronze Body, Brass Seat, Brass Trim, PTFE Packing, PTFE Softgoods, 160 deg F, 5-1/8 x 7-11/16 in

VP512A unit ventilator valves are normally open, single seated, straight through or angled globe valves for proportional control of either steam or hot water in unit ventilators.

Attributes

Body Material: Bronze
Connection Type: FNPT x Male
Inlet to Outlet Length: 6-1/4 in
Nominal Size: 1-1/4 in
Number of Ports/Ways: 2
Packing Material: PTFE
Pressure Rating: 150 psi
Seat Material: Brass
Softgoods Material: PTFE
Temperature Rating: 160 deg F
Trim Material: Brass

Features

  • Equal-percentage, high-lift throttling guide providing accurate control over wide load variations
  • Molded, replaceable composition disc for tight shutoff
  • Replaceable brass seat
  • Self adjusting, spring loaded PTFE packing
  • Back-seating arrangement to allow repacking without shutting down or draining system
  • Rotatable operator for aligning air connection with control air piping
  • Integral union connection to simplify installation and service
