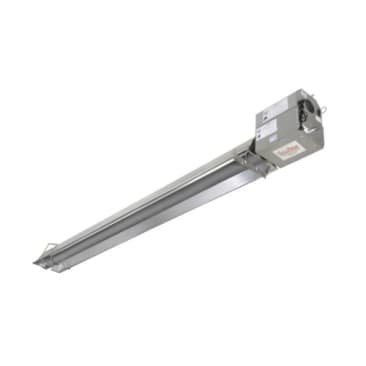

SUNSTAR 44506550 NG TO LP CONVERSION KIT SPS/U 100
Product Details
Attributes
Features
Resources
SunStar® Tube Integrity Safety System, SPS Series, Model: SPS/U 100, 100000 Btu/hr BTU, 120 V, 2.4 A, 60 Hz Frequency, 1 ph, MPT Connection, 0.8 in-WC Pressure, Steel, Additional Information: 1/2 in Connection, Direct Spark Ignition
Whether you need to heat your warehouse, garage or other hard to heat spaces, the SunStar® SPS/U Series infrared heaters provide both the field efficiency of radiant heat and the installation flexibility you need and all at a comfortable price.
- Eight different Btu sizes and more than 60 different configurations to custom design your infrared heating system
- Sidewall or through the roof venting
- Vented or indirect vented operation
- Products of combustion are pushed through the combustion chamber
- No draft hoods, totally enclosed combustion chamber
- Blower motor totally enclosed in the burner box, ideal for applications where minimal noise (less than 60 dB) is desired
- Heavy-duty permanently lubricated ball bearing, totally enclosed motor for maintenance-free operation
- 30 s pre-purge before ignition and 30 s post-purge after thermostat is satisfied
- Diaphragm air switch for proof of venting before gas flow and ignition
- Heavy-duty cast iron burner
- Reliable direct spark ignition systems and 100% gas shut-off safety control
- Burner inspection sight glass
- Step opening redundant combination gas valve for quiet ignition and added safety
- Inside or outside air for combustion
- Up to 25 ft outside combustion air capability
- Standard outside combustion air intake
- Diagnostic monitoring light system
- Highly efficient aluminum reflectors
- Individual reflectors can be rotated up to 45 deg to direct heat where needed
- 4 in OD heat treated aluminized steel combustion chamber (10 ft L)
Product Details
SunStar® Tube Integrity Safety System, SPS Series, Model: SPS/U 100, 100000 Btu/hr BTU, 120 V, 2.4 A, 60 Hz Frequency, 1 ph, MPT Connection, 0.8 in-WC Pressure, Steel, Additional Information: 1/2 in Connection, Direct Spark Ignition
Whether you need to heat your warehouse, garage or other hard to heat spaces, the SunStar® SPS/U Series infrared heaters provide both the field efficiency of radiant heat and the installation flexibility you need and all at a comfortable price.
Attributes
Features
- Eight different Btu sizes and more than 60 different configurations to custom design your infrared heating system
- Sidewall or through the roof venting
- Vented or indirect vented operation
- Products of combustion are pushed through the combustion chamber
- No draft hoods, totally enclosed combustion chamber
- Blower motor totally enclosed in the burner box, ideal for applications where minimal noise (less than 60 dB) is desired
- Heavy-duty permanently lubricated ball bearing, totally enclosed motor for maintenance-free operation
- 30 s pre-purge before ignition and 30 s post-purge after thermostat is satisfied
- Diaphragm air switch for proof of venting before gas flow and ignition
- Heavy-duty cast iron burner
- Reliable direct spark ignition systems and 100% gas shut-off safety control
- Burner inspection sight glass
- Step opening redundant combination gas valve for quiet ignition and added safety
- Inside or outside air for combustion
- Up to 25 ft outside combustion air capability
- Standard outside combustion air intake
- Diagnostic monitoring light system
- Highly efficient aluminum reflectors
- Individual reflectors can be rotated up to 45 deg to direct heat where needed
- 4 in OD heat treated aluminized steel combustion chamber (10 ft L)
