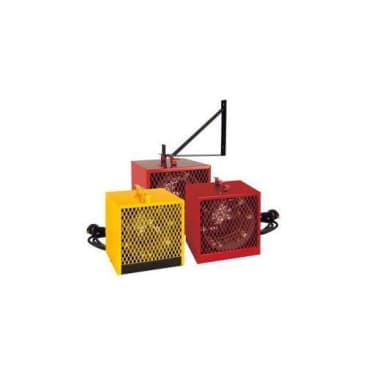

STELPRO SCH48T RED CONSTRUCTION HEATER
MFR Part #: SCH48T
SKU #: 1135732
Brand: Stelpro
UPC: 626296200315
Stelpro SCH48T 1-Phase Multi-Purpose Portable Electric Heater, 16382/12285 Btu/hr Capacity, 208/240 V AC, 3.6/4.8 kW
2 Years
Residential Applications
BAA Compliant | CSA Certified
Product Details
Attributes
Features
Resources
Stelpro Portable Electric Heater, 1-Phase Multi-Purpose, Series: SCH, 16382/12285 Btu/hr, 208/240 V AC, 60 Hz, 3.6/4.8 kW, 10-1/2 in W, 9-5/8 in D, 11-1/16 in Height, Wall Mount, 20 ga Steel, Red, Epoxy Polyester Powder Coated
Country Of Origin:China
Rewards:AD Rewards
Voltage Rating:208/240 V AC
Capacity:16382/12285 Btu/hr
Color:Red
Depth:9-5/8 in
Finish:Epoxy Polyester Powder Coated
Frequency Rating:60 Hz
Height:11-1/16 in
Material:20 ga Steel
Mounting Type:Wall
Power Rating:3.6/4.8 kW
Series:SCH
Type:1-Phase Multi-Purpose
Width:10-1/2 in
- Open coil generates instant heat
- Permanently enclosed lubricated motor
- Versatile - Permanent or temporary installation with optional support bracket
- Sturdy handle for portability that also serves as cord rack and which adapts to the mounting bracket
- 6 ft 12 AWG molded cable with 3-prong grounded, 30 A 250 VAC plug
- 6 ft 12 AWG molded cable for hard wired connection
- Thermal protection with automatic reset
- Ni-chrome element produces instant heat
- Cone shaped to concentrate the air around the element
- Built-in thermostat with control knob protector
- Connects to a standard 30 A 250 VAC grounded receptacle
- Hard wired into a wall junction box
- Mounting bracket that can rotate at 360 deg while preventing the unit from tipping
- Permanently enclosed lubricated motor and 300 cfm fan
Product Details
Stelpro Portable Electric Heater, 1-Phase Multi-Purpose, Series: SCH, 16382/12285 Btu/hr, 208/240 V AC, 60 Hz, 3.6/4.8 kW, 10-1/2 in W, 9-5/8 in D, 11-1/16 in Height, Wall Mount, 20 ga Steel, Red, Epoxy Polyester Powder Coated
Attributes
Country Of Origin: China
Rewards: AD Rewards
Voltage Rating: 208/240 V AC
Capacity: 16382/12285 Btu/hr
Color: Red
Depth: 9-5/8 in
Finish: Epoxy Polyester Powder Coated
Frequency Rating: 60 Hz
Height: 11-1/16 in
Material: 20 ga Steel
Mounting Type: Wall
Power Rating: 3.6/4.8 kW
Series: SCH
Type: 1-Phase Multi-Purpose
Width: 10-1/2 in
Features
- Open coil generates instant heat
- Permanently enclosed lubricated motor
- Versatile - Permanent or temporary installation with optional support bracket
- Sturdy handle for portability that also serves as cord rack and which adapts to the mounting bracket
- 6 ft 12 AWG molded cable with 3-prong grounded, 30 A 250 VAC plug
- 6 ft 12 AWG molded cable for hard wired connection
- Thermal protection with automatic reset
- Ni-chrome element produces instant heat
- Cone shaped to concentrate the air around the element
- Built-in thermostat with control knob protector
- Connects to a standard 30 A 250 VAC grounded receptacle
- Hard wired into a wall junction box
- Mounting bracket that can rotate at 360 deg while preventing the unit from tipping
- Permanently enclosed lubricated motor and 300 cfm fan
