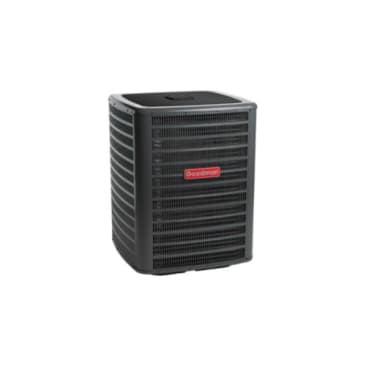

GOODMAN GSXC160241 16 SEER 2STG AC 2 TON
Product Details
Attributes
Features
Resources
Goodman® Split System Air Conditioner Condenser, GSXC16 Series, 2 ton Nominal Capacity, 24000 Btu/hr Cooling Capacity, 208-230 V, 14 A, 1/6 hp, 60 Hz, 1 ph Phase, Scroll Compressor, 820 cfm, 16 SEER, 2 Stages, R-410A Refrigerant, 3/8 in Liquid Line, 3/4 in Suction Line, 71 dB Sound Level, 20 A Fuse Rating, PSC Motor, Steel, Finish: Galvanized/Powder-Coated, 32-1/2 in H x 29-1/4 in W x 29-1/4 in D, Domestic/Import: Domestic, Additional Information: High-Efficiency
- Energy efficient two-stage scroll compressor
- Two speed PSC condenser fan motor
- Factory installed filter drier
- Contactor with lug connection
- Ground lug connection
- Copper tube and enhanced aluminum fin coil
- Fully charged for 15 ft of tubing length
- Heavy gauge galvanized steel cabinet and louvered coil guards
- Factory installed sensors monitoring coil and ambient temperature
- Factory installed high and low-pressure switches
- High-density foam compressor sound blanket
- In communicating mode, only (2) low voltage wires to the outdoor unit are required
- Color-coded terminal strip for non-communicating set up
- Copeland™ ComfortAlert built-in diagnostics
- Customized control algorithms
- ComfortBridge™ communications system compatible
- Service valves with sweat connections and easy access to gauge ports
- Engineered sound control top design
- Wire fan discharge grille
- Baked on powder paint finish with 500 hr salt spray approval
Product Details
Goodman® Split System Air Conditioner Condenser, GSXC16 Series, 2 ton Nominal Capacity, 24000 Btu/hr Cooling Capacity, 208-230 V, 14 A, 1/6 hp, 60 Hz, 1 ph Phase, Scroll Compressor, 820 cfm, 16 SEER, 2 Stages, R-410A Refrigerant, 3/8 in Liquid Line, 3/4 in Suction Line, 71 dB Sound Level, 20 A Fuse Rating, PSC Motor, Steel, Finish: Galvanized/Powder-Coated, 32-1/2 in H x 29-1/4 in W x 29-1/4 in D, Domestic/Import: Domestic, Additional Information: High-Efficiency
Attributes
Features
- Energy efficient two-stage scroll compressor
- Two speed PSC condenser fan motor
- Factory installed filter drier
- Contactor with lug connection
- Ground lug connection
- Copper tube and enhanced aluminum fin coil
- Fully charged for 15 ft of tubing length
- Heavy gauge galvanized steel cabinet and louvered coil guards
- Factory installed sensors monitoring coil and ambient temperature
- Factory installed high and low-pressure switches
- High-density foam compressor sound blanket
- In communicating mode, only (2) low voltage wires to the outdoor unit are required
- Color-coded terminal strip for non-communicating set up
- Copeland™ ComfortAlert built-in diagnostics
- Customized control algorithms
- ComfortBridge™ communications system compatible
- Service valves with sweat connections and easy access to gauge ports
- Engineered sound control top design
- Wire fan discharge grille
- Baked on powder paint finish with 500 hr salt spray approval
