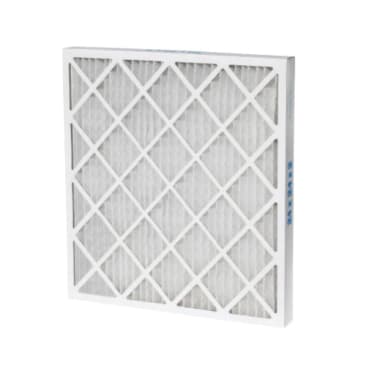

ECCO 684115 Image 1

ECCO 684115 PLEATED 20X25X1 AIR FILTER

MFR Part #: 684115
SKU #: 1123137
Brand: Approved Vendor
UPC: 400007883581
Ecco Heating Aerostar® 400 684115 Pleated Air Filter, Synthetic Media, 25 in W, 20 in H, 1 in D, 8 MERV
For high-efficiency filters, office and retail, manufacturing and distribution, government and education facilities, doctor offices, assisted living facilities and hospitals, hotels and airports, single and multi-family housing

Filtration Group® Pleated Air Filter, 400 Series, Synthetic Media, 25 in Width, 20 in Height, 1 in Depth, 8 MERV, 0.14 in-WG, 0.21 in-WG Initial Resistance, 1 in-WG Final Resistance, 1300 cfm Air Flow Capacity, 19-1/2 x 24-1/2 x 3/4 in Actual, 200 deg F

The Aerostar® Series 400 pleated air filter utilizes a state of the art 100% synthetic media to achieve exceptionally high-levels of efficiency with the lowest resistance to airflow available. The Series 400 filter is extremely effective in removing many airborne irritants such as pollens, molds, dander and dust. The low resistance improves airflow and can greatly reduce energy costs. This filter can be a valuable tool in achieving points for USGBC-LEED certification projects.

Product Details

Filtration Group® Pleated Air Filter, 400 Series, Synthetic Media, 25 in Width, 20 in Height, 1 in Depth, 8 MERV, 0.14 in-WG, 0.21 in-WG Initial Resistance, 1 in-WG Final Resistance, 1300 cfm Air Flow Capacity, 19-1/2 x 24-1/2 x 3/4 in Actual, 200 deg F

The Aerostar® Series 400 pleated air filter utilizes a state of the art 100% synthetic media to achieve exceptionally high-levels of efficiency with the lowest resistance to airflow available. The Series 400 filter is extremely effective in removing many airborne irritants such as pollens, molds, dander and dust. The low resistance improves airflow and can greatly reduce energy costs. This filter can be a valuable tool in achieving points for USGBC-LEED certification projects.

Attributes

Actual Size: 19-1/2 x 24-1/2 x 3/4 in
Air Flow Capacity: 1300 cfm
Depth: 1 in
Final Resistance: 1 in-WG
Height: 20 in
Initial Resistance: 0.14 in-WG, 0.21 in-WG
Media Material: Synthetic
MERV: 8
Series: 400 Series
Temperature Rating: 200 deg F
Width: 25 in

Features

  • High-capacity achieves MERV 8 3 10
  • Standard capacity achieves MERV 8 3 8
  • Extremely low resistance to airflow minimizes energy costs
  • 100% synthetic media is moisture-resistant and will not promote biological growth
  • Advanced media does not rely on electrostatic charge for efficiency

Resources

Specification Sheet
