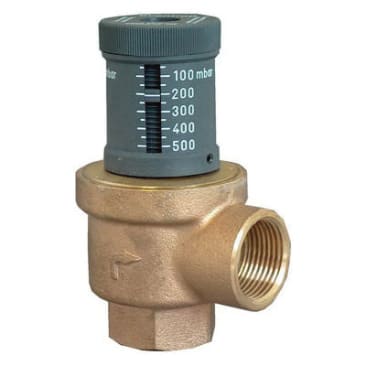

HEATLINK 60025V Image 1

HEATLINK 60025V 1 PRESSURE BALANCE VALVE

MFR Part #: 60025V
SKU #: 1211218
Brand: HeatLink®
UPC: 62799801654
HeatLink® 60025V Pressure Activated Bypass Valve, 1 in Nominal, FNPT End Style, 145 psi Pressure, 13.5 gpm Flow Rate, Bronze/Brass Body, Import

HeatLink® Pressure Activated Bypass Valve, Series: 60000V, 1 in Nominal, FNPT, 145 psi, 248 deg F, 13.5 gpm, Media: Water, Bronze/Brass Body, Stainless Steel Trim, EPDM Softgoods, Import

This valve prevents a steep rise of the pump head and maintains flow at a stable rate. Also ensures only required amount of circulating water is used for hydronic systems. The 1 in valve can be adjusted to any point between 2 and 17 ft H2O (50 and 500 mbar). Flow range of 0 to 13.5 US gpm (0 to 3066 Lph).

Product Details

HeatLink® Pressure Activated Bypass Valve, Series: 60000V, 1 in Nominal, FNPT, 145 psi, 248 deg F, 13.5 gpm, Media: Water, Bronze/Brass Body, Stainless Steel Trim, EPDM Softgoods, Import

This valve prevents a steep rise of the pump head and maintains flow at a stable rate. Also ensures only required amount of circulating water is used for hydronic systems. The 1 in valve can be adjusted to any point between 2 and 17 ft H2O (50 and 500 mbar). Flow range of 0 to 13.5 US gpm (0 to 3066 Lph).

Attributes

Body Material: Bronze/Brass
Domestic/Import: Import
End Style: FNPT
Flow Rate: 13.5 gpm
Media: Water
Nominal Size: 1 in
Pressure Rating: 145 psi
Softgoods Material: EPDM
Temperature Rating: 248 deg F
Trim Material: Stainless Steel

Features

  • EPDM washer and ring gasket
  • Stainless steel spring

Resources

Specification Sheet
