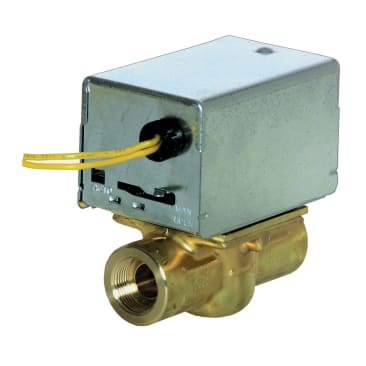

HONEYWELL V8043D1031/U 3/4 IP ZONE VALVE NO LESS END SWITCH
Product Details
Attributes
Features
Resources
Honeywell Home, V8043D1031/U, Zone Valve, Two-Way, Series: V8043, 3/4 in Nominal, NPT End Style, 125 psi Pressure, 3.5 Cv Coefficient of Volume, 24 VAC, 0.32 A, 40 to 200 deg F Water, 20 psi Differential, 15 sec Time Cycle, 18 in Leads Electrical Connections, Brass, 4 in H x 3-23/32 in W x 2 3/8 in D Dimensions, Metallic
A Simple Setup, The Honeywell Home Two-Way On-Off Low Voltage Valve from Resideo consists of an actuator and valve assembly for maintaining the flow of hot water. Installation is quick and easy with compact construction and no need for valve disassembly.
- Provides 2-position, straight through control of water
- Compact construction for easy installation
- Manual opener for valve operation on power failure, Valve returns to automatic position when power is restored
- Choice of sweat or flare fitting brass end connections for standard copper tubing
- Motor can be replaced by removing one screw, without disturbing the valve body or draining the system
- Complete powerhead may be removed or replaced without breaking the line connections or draining the system
- All models can be installed without disassembling the valve
- Fits under the cover of most baseboards
Product Details
Honeywell Home, V8043D1031/U, Zone Valve, Two-Way, Series: V8043, 3/4 in Nominal, NPT End Style, 125 psi Pressure, 3.5 Cv Coefficient of Volume, 24 VAC, 0.32 A, 40 to 200 deg F Water, 20 psi Differential, 15 sec Time Cycle, 18 in Leads Electrical Connections, Brass, 4 in H x 3-23/32 in W x 2 3/8 in D Dimensions, Metallic
A Simple Setup, The Honeywell Home Two-Way On-Off Low Voltage Valve from Resideo consists of an actuator and valve assembly for maintaining the flow of hot water. Installation is quick and easy with compact construction and no need for valve disassembly.
Attributes
Features
- Provides 2-position, straight through control of water
- Compact construction for easy installation
- Manual opener for valve operation on power failure, Valve returns to automatic position when power is restored
- Choice of sweat or flare fitting brass end connections for standard copper tubing
- Motor can be replaced by removing one screw, without disturbing the valve body or draining the system
- Complete powerhead may be removed or replaced without breaking the line connections or draining the system
- All models can be installed without disassembling the valve
- Fits under the cover of most baseboards
