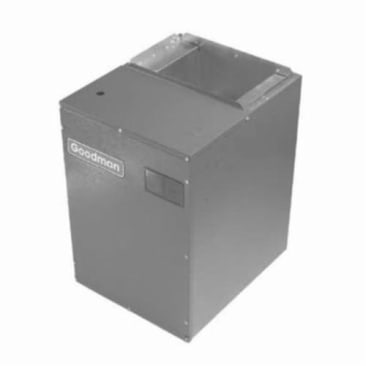

GOODMAN MBVC1200AA1 Image 1

MODULAR BLOWER VARIABLE SPEED GOODMAN MBVC1200AA-1

MFR Part #: MBVC1200AA1
SKU #: 1219602
Brand: Goodman®
UPC: 979066
Goodman® MBVC1200AA1 Multi-Position Modular Blower, 208/230 V AC, 1/2 hp, 1200 cfm
AHRI Certified | cETLus Listed | ISO 9001

Goodman® Modular Blower, Multi-Position, Series: MBVC, 208/230 V AC, 1/2 hp, 1200 cfm, 60 Hz, ECM Variable Speed Motor, 26 in H x 17-1/2 in W x 21 in D

Product Details

Goodman® Modular Blower, Multi-Position, Series: MBVC, 208/230 V AC, 1/2 hp, 1200 cfm, 60 Hz, ECM Variable Speed Motor, 26 in H x 17-1/2 in W x 21 in D

Attributes

Dimensions26 in H x 17-1/2 in W x 21 in D
Flow Rate1200 cfm
Frequency Rating60 Hz
Horsepower1/2 hp
Motor TypeECM Variable Speed
SeriesMBVC
TypeMulti-Position
Voltage Rating208/230 V AC

Features

  • Advanced configuration of the airflow and tonnage in communicating mode
  • Provides constant CFM over a wide range of static pressure conditions independent of duct system
  • CFM indicator
  • Fault recall of six most recent faults
  • Provides adjustable low CFM for efficient fan-only operation
  • Improved humidity and comfort control
  • Built in compatibility with multi-stage heat pumps and cooling applications
  • Blower section usable as electric heater
  • Horizontal or vertical configuration capabilities
  • Foil faced insulation covers the internal casing to reduces cabinet condensation
  • Galvanized, leather grain embossed finish
  • Cabinet air leakage less than 2% at 1.0 in H2O when tested in accordance with ASHRE standards 193
  • Cabinet air leakage less than 1.4% at 0.5 in H2O when tested in accordance with ASHRE standards 193
  • Without circuit breaker
  • Single phase
  • ComfortNet™ communicating System compatible
  • 4.3 min circuit ampacity
  • 15 A maximum overcurrent device
  • 4.3 A minimum circuit ampacity
