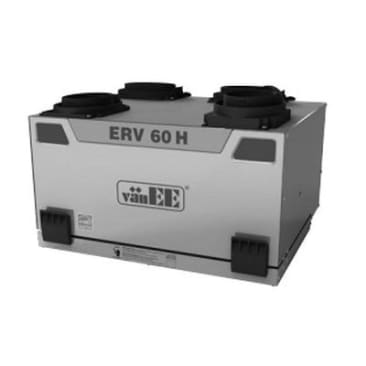

VANEE 41606 ENERGY RECOVERY UNIT W/VERT PORTS (60H)

MFR Part #: 41606
SKU #: 1056935
Brand: VANEE
UPC: 772371086142
Please note this item is discontinued (order fulfillment will depend on stock availability): vanEE® 41606 Top Port Energy Recovery Ventilator, 45 to 105 cfm Air Flow, 120 VAC, 120 W, 1 A, Steel
2 Year Parts, 5 Year Energy RecOver Core
cULus Listed | CSA C439, C22.2 2 no. 113, F326 Certified | ENERGY STAR® Certified | HVI Certified | UL 1812 Listed

vanEE® Top Port Energy Recovery Ventilator, Model: ERV 60H, Air Flow Capacity: 45 to 105 cfm, 1 A, 120 VAC, 60 Hz, 120 W Power, 56 sq-ft Coverage Area, 5 in Duct, 55 to 67 % Efficiency, 0.4 in-WG, Motor Type: Permanent Split Capacitor, Steel, Pre-Painted, -13 to 32 deg F, 27-1/16 in L, 19-13/16 in W, 12-3/16 in H

Configured with factory built vertical or horizontal ports, the vanEE® ERV 60H is the most versatile 100 cfm unit available on the market today. Among its exclusive features, this unit is equipped with integrated balancing and backdraft dampers in its exhaust to outside and fresh air supply ports. Its operation can be interlocked with an existing furnace without adding an extra relay. Also, for more convenience, its latches can be relocated on its front. This compact, lightweight, and powerful unit is the ideal choice for small single-family homes, high rise residential building and other limited space applications.

Product Details

vanEE® Top Port Energy Recovery Ventilator, Model: ERV 60H, Air Flow Capacity: 45 to 105 cfm, 1 A, 120 VAC, 60 Hz, 120 W Power, 56 sq-ft Coverage Area, 5 in Duct, 55 to 67 % Efficiency, 0.4 in-WG, Motor Type: Permanent Split Capacitor, Steel, Pre-Painted, -13 to 32 deg F, 27-1/16 in L, 19-13/16 in W, 12-3/16 in H

Configured with factory built vertical or horizontal ports, the vanEE® ERV 60H is the most versatile 100 cfm unit available on the market today. Among its exclusive features, this unit is equipped with integrated balancing and backdraft dampers in its exhaust to outside and fresh air supply ports. Its operation can be interlocked with an existing furnace without adding an extra relay. Also, for more convenience, its latches can be relocated on its front. This compact, lightweight, and powerful unit is the ideal choice for small single-family homes, high rise residential building and other limited space applications.

Attributes

Amperage Rating: 1 A
Clearance Items: Clearance
Frequency Rating: 60 Hz
Material: Steel
Motor Type: Permanent Split Capacitor
Power Rating: 120 W
Temperature Rating: -13 to 32 deg F
Voltage Rating: 120 VAC

Features

  • Versatile vertical port configuration
  • Removable terminal block to ease auxiliary wall control connections
  • Integrated pressure taps, if balancing required by building code
  • Twin high pressure blowers

Resources

Owners/User Manual
Specification Sheet
