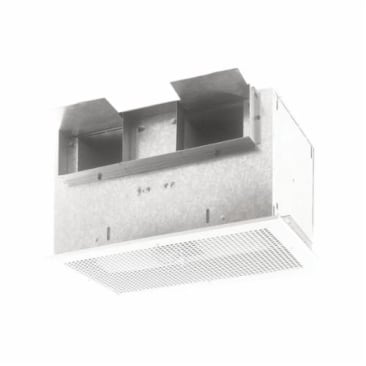

BROAN L400 Image 1

BROAN L400 LO-SONE VENTILATOR FAN 442CFM 2.4 SONNES

MFR Part #: L400
SKU #: 1202656
Brand: BROAN
UPC: 026715124541
Broan® LoSone Select® L400 High Capacity Ceiling Exhaust Ventilator, 434 cfm, 4-1/2 x 18-1/2 in Dia Duct, 120 VAC, 1.4 A, Domestic
Conference, Commercial Buildings and Public Restroom
UL/cUL Listed | AMCA Certified

Broan® LoSone Select® Ceiling Exhaust Ventilator, High Capacity, 434 cfm, 4-1/2 x 18-1/2 in Duct Dia, 120 VAC, 1.4 A, 60 Hz, 14 in Grille Length, 23-1/4 in Grille Width, Metal Grille, 12-1/4 in Housing Length, 21-1/2 in Housing Width, 11-3/4 in Housing Height, Galvanized Steel Housing, Ceiling Mount, White, Domestic

Broan® high capacity fans are an exceptionally quiet solution to continuous ventilation. With their heavy duty motors, high capacity fans are an ideal solution for conference rooms, public restrooms and other areas in commercial buildings that require ongoing ventilation. Low-vibration and lo-profile, they work quietly without getting noticed.

Product Details

Broan® LoSone Select® Ceiling Exhaust Ventilator, High Capacity, 434 cfm, 4-1/2 x 18-1/2 in Duct Dia, 120 VAC, 1.4 A, 60 Hz, 14 in Grille Length, 23-1/4 in Grille Width, Metal Grille, 12-1/4 in Housing Length, 21-1/2 in Housing Width, 11-3/4 in Housing Height, Galvanized Steel Housing, Ceiling Mount, White, Domestic

Broan® high capacity fans are an exceptionally quiet solution to continuous ventilation. With their heavy duty motors, high capacity fans are an ideal solution for conference rooms, public restrooms and other areas in commercial buildings that require ongoing ventilation. Low-vibration and lo-profile, they work quietly without getting noticed.

Attributes

Amperage Rating: 1.4 A
CFM Rating: 442 cfm at 0.1 in SP
Color: White, White Grille
Country Of Origin: US
Duct Size: 4-1/2 x 18-1/2 in
Finish: Galvanized Housing
Frequency Rating: 60 Hz
Grille Size: 14 in L x 23-1/4 in W
Height: 11-3/4 in
Length: 12-1/4 in
Material: 20 ga Steel, Metal
Mounting Type: Ceiling
Power Rating: 146 W
Voltage Rating: 120 VAC, 120 V
Width: 21-1/2 in
Domestic/Import: Domestic
Duct Diameter: 4-1/2 x 18-1/2 in
Flow Rate: 434 cfm
Grille Length: 14 in
Grille Material: Metal
Grille Width: 23-1/4 in
Housing Height: 11-3/4 in
Housing Length: 12-1/4 in
Housing Material: Galvanized Steel
Housing Width: 21-1/2 in
Type: High Capacity

Features

  • Resilient anti-vibration motor mounts
  • Dynamically balanced polymeric centrifugal blower wheel for quiet, efficient performance
  • Low profile styling grille blends with any decor
  • Rugged 20 ga galvanized steel housing with 0.5 in acoustic insulation inside
  • 8-position mounting brackets for easy installation and greater adaptability to various mounting requirements, automatic backdraft damper located within duct connector
  • May be installed as an in-line ventilator with addition of accessory kit model 982L, for controlling use model 57V (ivory)/57W (white) 3 A, electronic variable speed control or model 59V (ivory)/59W (white) 60 min time control or model 61V (ivory)/61W (white) 15 min time control or model 71V (ivory)/71W (white) 12 hr time control
  • Plug-in permanently lubricated thermally protected motor designed for continuous operation
  • Low rpm for quiet operation blower
  • 434 cfm at 1/8 in SP horizontal, 2.3 Sones, 416 cfm at 0.1 in SP at 1/8 in SP vertical, 2.6 Sones
  • Round duct
  • Square shape grille
  • 735 rpm horizontal, 755 rpm at 0.1 in SP vertical AC motor
