ENTRELEC 1SVR405651R3000 SOCK F/2&4P SPDT REL
MFR Part #: 1SVR405651R3000
SKU #: 1014974
Brand: ABB
UPC: 662019214009

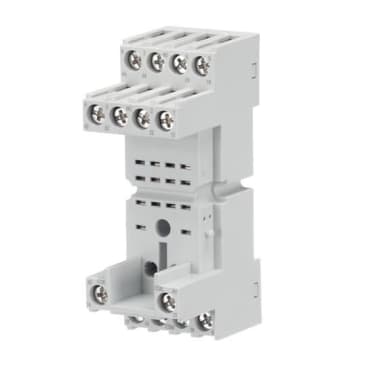

ABB 1SVR405651R3000 CR-M Standard Socket, 250 V AC/VDC, 7 A, For Use With 2CO or 4CO SPDT Plug-In CR-M Relay, 4 Poles
IEC/EN 61984
Product Details
Attributes
Features
Resources
ABB Standard Socket, Series: CR-M, 250 V AC/VDC, 7 A, 4 Poles, -40 to 70 deg C, For Use With: 2CO or 4CO SPDT Plug-In CR-M Relay, DIN Rail Mounting, Screw Terminal, IP20 Enclosure, 82 mm L x 27 mm W x 42.5 mm H Dimensions
Amperage Rating:7 A
Country Of Origin:China
Dimensions:82 mm L x 27 mm W x 42.5 mm H
Enclosure Type:IP20
Mounting Type:DIN Rail
Number of Poles:4
Series:CR-M
Suitable For Use With:2CO or 4CO SPDT Plug-In CR-M Relay
Temperature Rating:-40 to 70 deg C
Terminal Type:Screw
Type:Standard
Voltage Rating:250 V AC
- Position of connection terminals: coil connection (A1-A2) on lower side of the socket, contact connections (n/o and n/c contacts) on the lower and upper side of the socket
Product Details
ABB Standard Socket, Series: CR-M, 250 V AC/VDC, 7 A, 4 Poles, -40 to 70 deg C, For Use With: 2CO or 4CO SPDT Plug-In CR-M Relay, DIN Rail Mounting, Screw Terminal, IP20 Enclosure, 82 mm L x 27 mm W x 42.5 mm H Dimensions
Attributes
Amperage Rating: 7 A
Country Of Origin: China
Dimensions: 82 mm L x 27 mm W x 42.5 mm H
Enclosure Type: IP20
Mounting Type: DIN Rail
Number of Poles: 4
Series: CR-M
Suitable For Use With: 2CO or 4CO SPDT Plug-In CR-M Relay
Temperature Rating: -40 to 70 deg C
Terminal Type: Screw
Type: Standard
Voltage Rating: 250 V AC
Features
- Position of connection terminals: coil connection (A1-A2) on lower side of the socket, contact connections (n/o and n/c contacts) on the lower and upper side of the socket
