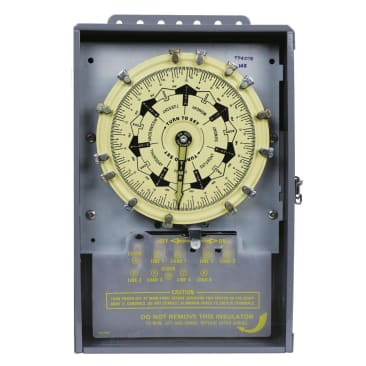

INTERMATIC T7401B Image 1

7 DAY DIAL 4PST 125V 40 AMP INTERMATIC T7401B

MFR Part #: T7401B
SKU #: 0737265
Brand: Intermatic®
UPC: 078275461017
Intermatic® T7401B T7000B Electro Mechanical Timer Switch, 3-1/2 hr to 7 days Setting, 125 V AC, 10 hp, 4NO 4 Form A 4PST Contact, 4 Poles
1 Year
Commercial, Industrial, Residential, Indoor and HVACR Applications
cCSAus Certified | HVACR

Intermatic® Timer Switch, Electro Mechanical, Series: T7000B, 125 V AC, 40 A, 10 hp, 4 Pole, 4NO 4 Form A 4PST Contact Form, 3-1/2 hr to 7 days Time Setting, Screw Electrical Connections, NEMA 1 Enclosure, -40 to 130 deg F, Wall Mounting, 12-1/2 in H x 8-1/4 in W x 4 in D Dimensions

These 7-Day Mechanical Time Switches offer the capability of having a different schedule for each day of the week. They can handle up to 40 A of electrical loads per circuit and have separate terminals for powering the clock motor. These time switches can handle up to four loads per clock, providing a single control for easier installation. Each time switch comes with 7 ON and 7 OFF trippers, allowing for at least one ON/OFF operation each day.

Product Details

Intermatic® Timer Switch, Electro Mechanical, Series: T7000B, 125 V AC, 40 A, 10 hp, 4 Pole, 4NO 4 Form A 4PST Contact Form, 3-1/2 hr to 7 days Time Setting, Screw Electrical Connections, NEMA 1 Enclosure, -40 to 130 deg F, Wall Mounting, 12-1/2 in H x 8-1/4 in W x 4 in D Dimensions

These 7-Day Mechanical Time Switches offer the capability of having a different schedule for each day of the week. They can handle up to 40 A of electrical loads per circuit and have separate terminals for powering the clock motor. These time switches can handle up to four loads per clock, providing a single control for easier installation. Each time switch comes with 7 ON and 7 OFF trippers, allowing for at least one ON/OFF operation each day.

Attributes

Amperage Rating: 40 A
Contact Form: 4NO 4 Form A 4PST
Dimensions: 12-1/2 in H x 8-1/4 in W x 4 in D
Electrical Connections: Screw
Enclosure Type: NEMA 1
Horsepower: 10 hp
Mounting Type: Wall
Number of Poles: 4
Series: T7000B
Temperature Rating: -40 to 130 deg F
Time Setting: 3-1/2 hr to 7 days
Type: Electro Mechanical
Voltage Rating: 125 V AC

Features

  • Different ON/OFF programs each day of the week
  • True 7-day load control with minimum ON/OFF time of 3 1/2 hr
  • Separate clock motor terminals for switching loads not on line voltage
  • Carry-over automatically rewinds when power resumes
  • Minimum of 16 hr carry-over for maintaining preset schedules during power failures
  • Available with Type 1 rated indoor metal enclosure in a gray finish with a separate grounding terminal
