PHILIPS 109611 Image 1

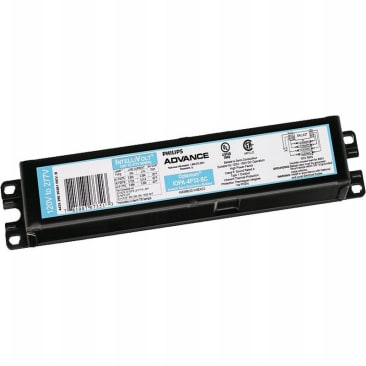

PHILIPS 109611 OPTANIUM HE ELECT T8 FL BLST F32T8 120-277V

MFR Part #: 109611
SKU #: 1116728
Brand: Signify | Advance
UPC: 781087081624
Advance IntelliVolt® OPTANIUM 109611 Electronic Low Watt Small Can Ballast, 32 W Lamp, 120 to 277 VAC, Programmed, 0.65 Ballast Factor
This product may be subject to ecological fees.
Outdoor Applications
CEC Certified | CEE Certified | Circle E Logo | CSA Certified | FCC Non-Consumer Approved | UL Listed

Advance IntelliVolt® OPTANIUM Ballast, Electronic Low Watt Small Can, 32 W Lamp, 71 W Wattage, 120 to 277 VAC, 0.26 to 0.59 A, 50/60 Hz Frequency, Programmed Start, 0 deg F Minimum Starting, Total Harmonic Distortion: 0.1 %, Power Factor: 0.98, 3 Lamps, Ballast Factor: 0.65, 70 deg C, Metal, 9.5 in L x 1.7 in W x 1.18 in H Dimensions

Philips Advance OPTANIUM high efficiency electronic ballasts are engineered to optimize lighting performance and maximize energy savings. These ballasts provide an unparalleled package of features and benefits to support the wide variety of T8 fluorescent lamps.

Product Details

Advance IntelliVolt® OPTANIUM Ballast, Electronic Low Watt Small Can, 32 W Lamp, 71 W Wattage, 120 to 277 VAC, 0.26 to 0.59 A, 50/60 Hz Frequency, Programmed Start, 0 deg F Minimum Starting, Total Harmonic Distortion: 0.1 %, Power Factor: 0.98, 3 Lamps, Ballast Factor: 0.65, 70 deg C, Metal, 9.5 in L x 1.7 in W x 1.18 in H Dimensions

Philips Advance OPTANIUM high efficiency electronic ballasts are engineered to optimize lighting performance and maximize energy savings. These ballasts provide an unparalleled package of features and benefits to support the wide variety of T8 fluorescent lamps.

Attributes

Lamp Wattage32 W
Number of Lamps3
Start TypeProgrammed
Voltage Rating120 to 277 V AC
Amperage Rating0.26 to 0.59 A
Ballast Factor.65
Dimensions9.5 in L x 1.7 in W x 1.18 in H
Frequency Rating50/60 Hz
MaterialMetal
Minimum Starting Temperature0 deg F
Power Factor.98
Temperature Range70 deg C
Total Harmonic Distortion.1 %
TypeElectronic Low Watt Small Can
Wattage71 W
