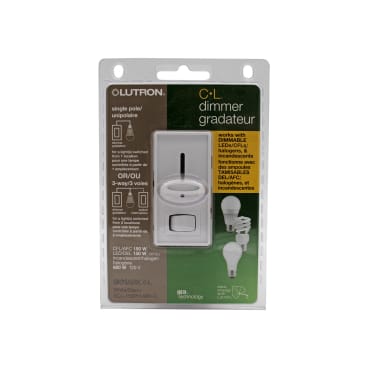

LUTRON SCL-153PH-WH-C Image 1

LUTRON SCL-153PH-WH-C SKYLARK LED/CFL INC/HAL 1 POLE/ 3WAY

MFR Part #: SCL-153PH-WH-C
SKU #: 1210601
Brand: Lutron®
UPC: 784276009003
Lutron® SCL-153PH-WH-C Dimmer Switch, 120 VAC, 1 Poles
Lighting Control
UL CSA NOM

Lutron® Dimmer Switch, 120 VAC, 60 Hz Frequency, 1 Pole, Dimmer With On/Off Switch Start, Wall Box Mounting, 0 to 40 deg C, Plastic, 4.69 in (119 mm) x 2.94 in (75 mm) Dimensions

The Lutron Skylark LED+ dimmer switch includes the most advanced technology for superior dimming for up to 150W of dimmable LED or 600W of Incandescent/Halogen. The Skylark dimmer switch features a smooth, linear slider knob to dim or brighten the lights while the rocker switch turns lights ON/OFF. Set a favorite preset level with the slider before turning on. The Skylark also features an easy low-end trim adjustment directly on the dimmer which eliminates complicated programming or having to turn the power off. Available in 7 gloss colors. Pairs perfectly with Lutron Claro wall plates for consistent color matching (sold separately).

Product Details

Lutron® Dimmer Switch, 120 VAC, 60 Hz Frequency, 1 Pole, Dimmer With On/Off Switch Start, Wall Box Mounting, 0 to 40 deg C, Plastic, 4.69 in (119 mm) x 2.94 in (75 mm) Dimensions

The Lutron Skylark LED+ dimmer switch includes the most advanced technology for superior dimming for up to 150W of dimmable LED or 600W of Incandescent/Halogen. The Skylark dimmer switch features a smooth, linear slider knob to dim or brighten the lights while the rocker switch turns lights ON/OFF. Set a favorite preset level with the slider before turning on. The Skylark also features an easy low-end trim adjustment directly on the dimmer which eliminates complicated programming or having to turn the power off. Available in 7 gloss colors. Pairs perfectly with Lutron Claro wall plates for consistent color matching (sold separately).

Attributes

Dimensions: 4.69 in (119 mm) x 2.94 in (75 mm)
Frequency Rating: 60 Hz
Material: Plastic
Mounting Type: Wall Box
Number of Poles: 1
Start Type: Dimmer With On/Off Switch
Temperature Rating: 0 to 40 deg C
Voltage Rating: 120 VAC

Features

  • Single Pole or 3-Way compatible, Wire lead installation
  • Minimum load requires 1 compatible LED or 10W Incandescent/Halogen
  • Easy low-end trim adjustment lever, No complicated programming or turning off power to set

Resources

Full Engineering Drawing
Instruction/Installation Manual
Specification Sheet
Warranty Information
