PHILIPS RH24L40KU Image 1

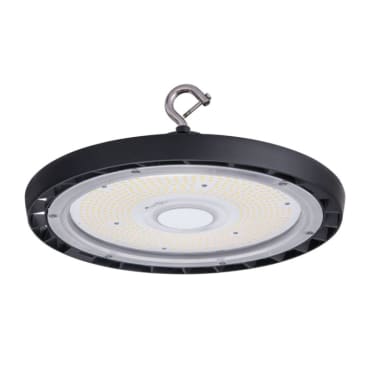

PHILIPS RH24L40KU ROUND HIGH BAY 195W/24000-LUM/120-277V

MFR Part #: RH24L40KU
SKU #: 1231995
Brand: Signify | Signify Luminaires
UPC: 190096131075
Signify Luminaries PILA RH24L40KU Round LED High Bay Fixture With Universal Hook LED Lamp, 195 W Fixture, 120/277 V AC, Black Painted Housing
3 years Limited
This product may be subject to ecological fees.
6 ft Cord for Wiring
Big Box Retail, Economical General Illumination of Warehouses, Light Industrial and Storage Areas Applications
cETLus Listed for Damp Locations

Signify Luminaries PILA LED High Bay Fixture, Round, 120/277 V AC, 195 W Fixture, LED Lamp, 30000 hr Average Life, 4000 K Color Temperature, >80 CRI, Polycarbonate Lens, 24000 Lumens, IP65/IK08 Enclosure, Suspended Mounting, Die Cast Aluminum Housing Material, Black Painted Housing Finish, 13 in Dia x 6-1/2 in L Dimensions

Product Details

Signify Luminaries PILA LED High Bay Fixture, Round, 120/277 V AC, 195 W Fixture, LED Lamp, 30000 hr Average Life, 4000 K Color Temperature, >80 CRI, Polycarbonate Lens, 24000 Lumens, IP65/IK08 Enclosure, Suspended Mounting, Die Cast Aluminum Housing Material, Black Painted Housing Finish, 13 in Dia x 6-1/2 in L Dimensions

Attributes

Country Of Origin: US
Housing Finish: Black Painted
Average Life: 30000 hr
Color Rendering Index (CRI): >80
Color Temperature: 4000 K
Dimensions: 13 in Dia x 6-1/2 in L
Enclosure Type: IP65/IK08
Fixture Wattage: 195 W
Housing Material: Die Cast Aluminum
Lamp Type: LED
Lens Type: Polycarbonate
Lumens: 24000 Lumens
Mounting Type: Suspended
Type: Round
Voltage Rating: 120/277 V AC

Features

  • The Pila RH LED round high bay is a rugged yet economical suspended luminaire
  • It is an excellent choice for general illumination of warehouses, light industrial, big box retail and storage areas

Resources

Catalog
Instruction/Installation Manual
Specification Sheet
