CBS 680205024Y 1/2X24 FXM YELLOW GAS CONNECTOR
MFR Part #: G012YE101124
SKU #: 1240357
Brand: CB SUPPLIES
UPC: 883882502103

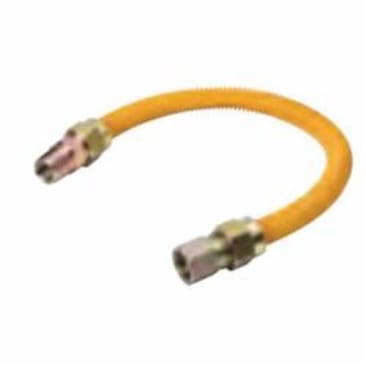

B&K® PRO FlexConnect™ ProLine™ G012YE101124 Gas Appliance Connector, 1/2 in Nominal, MNPT x FNPT End Style, 24 in L, Stainless Steel
Ranges, Tankless Water Heaters, Gas Fireplaces, Space Heaters, Furnaces, Manufactured Homes, Outdoor Grills, Dryers, Rooftop Units and Boilers
ANSI Z21.24/CSA 6.10 - Indoor/Outdoor | ANSI Z21.69/CSA 6.16 - Commercial Food Services | ANSI Z21.75/CSA 6.27 - Manufactured Homes | MEA Approval (Code #: 170-08-E) | State of Massachusetts Approval (Code: G3-0809-34) | cUPC® Listed
Product Details
Attributes
Features
Resources
B&K® PRO FlexConnect™ ProLine™ Gas Appliance Connector, 1/2 in Nominal, MNPT x FNPT, 1/2 in Outside Dia, 24 in Length, Stainless Steel, Yellow, Epoxy Powder Coated
Color:Yellow
End Style:MNPT x FNPT
Finish:Epoxy Powder Coated
Length:24 in
Material:Stainless Steel
Nominal Size:1/2 in
Outside Diameter:1/2 in
- Quick and easy installation
- Corrugated stainless steel design is flexible to accommodate changes in construction specs
- Connectors can be manipulated by hand making it easy to maneuver in confined areas
- Reduces the need for fittings, thus reducing possible joint leaks and is cost effective for material, time and labor
- Approved for use with natural, manufactured, LP (propane), and LP air mixture gases with internal line pressure no greater than 1/2 lb/sq-in (psi) (3.5kPa)
- CSA design certified for indoor and outdoor use
- Durable 304 stainless steel (ASTM A240)
- Neck free design for maximum bending flexibility
- 100% leak tested for quality assurance
- Yellow epoxy coated gas connectors are available for extra corrosion-resistance from harsh chemicals
- High quality 45 deg flare fittings (SAE J512)
- Rated operating temperature: -40 deg F to 150 deg F
Product Details
B&K® PRO FlexConnect™ ProLine™ Gas Appliance Connector, 1/2 in Nominal, MNPT x FNPT, 1/2 in Outside Dia, 24 in Length, Stainless Steel, Yellow, Epoxy Powder Coated
Attributes
Color: Yellow
End Style: MNPT x FNPT
Finish: Epoxy Powder Coated
Length: 24 in
Material: Stainless Steel
Nominal Size: 1/2 in
Outside Diameter: 1/2 in
Features
- Quick and easy installation
- Corrugated stainless steel design is flexible to accommodate changes in construction specs
- Connectors can be manipulated by hand making it easy to maneuver in confined areas
- Reduces the need for fittings, thus reducing possible joint leaks and is cost effective for material, time and labor
- Approved for use with natural, manufactured, LP (propane), and LP air mixture gases with internal line pressure no greater than 1/2 lb/sq-in (psi) (3.5kPa)
- CSA design certified for indoor and outdoor use
- Durable 304 stainless steel (ASTM A240)
- Neck free design for maximum bending flexibility
- 100% leak tested for quality assurance
- Yellow epoxy coated gas connectors are available for extra corrosion-resistance from harsh chemicals
- High quality 45 deg flare fittings (SAE J512)
- Rated operating temperature: -40 deg F to 150 deg F
