OATEY 37759 MODA LAV 2 VLV F1807 PEX BRASS NO HAMMER
Product Details
Attributes
Features
Resources

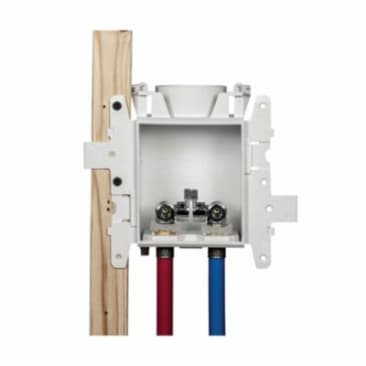

Oatey® MODA™ 2-Valve Lavatory Supply Box, PEX Inlet, 150 psi Air/250 psi Water, 250 deg F, PVC, 8 in W x 3.38 in D x 4.85 in H
MODA™ Supply Box System is designed to meet the needs of plumbing contractors for washing machine, ice maker, lavatory, toilet, dishwasher and SureVent®Air Admittance Valve applications. A universal single box platform provides maximum versatility, installation simplicity and rugged reliability. MODA™ Supply Box System is the ultimate solution for speed and flexibility.
- Using a single box platform provides significant convenience to installers
- One universal faceplate is compatible with all box types
- All boxes can snap to one another and common brackets can be used on any MODA™ supply box
- Unique interlocking wing flanges accommodate on-stud, straddle-stud and three-box installations
- Advanced snap-lock design allows assembly and disassembly with equal ease, for quicker installation and easy repositioning on the job
- Separate valve and drain boxes allow paired or split boxes between walls or stud bays to prevent supply/drain crossovers
- Dual box design provides ideal options for stacked washer/dryers and space-limited laundry rooms
- Plumber-preferred, quarter turn test plug with gasket provided with every drain box
- This means no knock outs falling into drains and no tools required
- Oatey® exclusive feature
- Stands up to the roughest job site abuse and no transition cement needed when solvent welding PVC pipe
- Two piece valve design makes valve replacement easy to repair, without damaging drywall
- Forged brass valve body
- Lead free chrome plated valve
- Stainless steel valve retention clip
- EPDM valve O-ring
Product Details
Oatey® MODA™ 2-Valve Lavatory Supply Box, PEX Inlet, 150 psi Air/250 psi Water, 250 deg F, PVC, 8 in W x 3.38 in D x 4.85 in H
MODA™ Supply Box System is designed to meet the needs of plumbing contractors for washing machine, ice maker, lavatory, toilet, dishwasher and SureVent®Air Admittance Valve applications. A universal single box platform provides maximum versatility, installation simplicity and rugged reliability. MODA™ Supply Box System is the ultimate solution for speed and flexibility.
Attributes
Features
- Using a single box platform provides significant convenience to installers
- One universal faceplate is compatible with all box types
- All boxes can snap to one another and common brackets can be used on any MODA™ supply box
- Unique interlocking wing flanges accommodate on-stud, straddle-stud and three-box installations
- Advanced snap-lock design allows assembly and disassembly with equal ease, for quicker installation and easy repositioning on the job
- Separate valve and drain boxes allow paired or split boxes between walls or stud bays to prevent supply/drain crossovers
- Dual box design provides ideal options for stacked washer/dryers and space-limited laundry rooms
- Plumber-preferred, quarter turn test plug with gasket provided with every drain box
- This means no knock outs falling into drains and no tools required
- Oatey® exclusive feature
- Stands up to the roughest job site abuse and no transition cement needed when solvent welding PVC pipe
- Two piece valve design makes valve replacement easy to repair, without damaging drywall
- Forged brass valve body
- Lead free chrome plated valve
- Stainless steel valve retention clip
- EPDM valve O-ring
