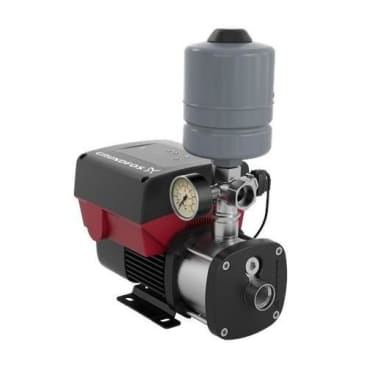

GRUNDFOS 98548118 CMBE-10-54 2HP 240V MULTI-STG BOOSTER SYS
Product Details
Attributes
Features
Resources
Grundfos Centrifugal Booster Pump, Compact Multi-Stage, Series: CMBE, 52.8 gpm, 1-1/2 in NPT Inlet, 1-1/2 in NPT Outlet, 54 m Maximum Head, 2 hp, 200 to 240 VAC, 50 Hz, 1 ph, 360 to 4000 rpm Motor, (2) 304 Stainless Steel Impeller, Horizontal Mount, 122 deg F Ambient, IP55, 304 Stainless Steel, 14.84 in L x 9.13 in W x 3.62 in H
The Grundfos CMBE constant water pressure booster pump boasts premium craftsmanship with stainless steel construction for durability in residential and light commercial settings. This all-in-one solution features a built-in sensor, controller, and check valve. With a high efficiency permanent magnet motor, the CMBE offers exceptional performance while reducing energy consumption. The integrated pressure sensor monitors water usage changes, signaling the speed controller to adapt motor speed accordingly. The MGE motor includes thermal protection against slow overloading and blocking, ensuring reliable operation.
- Constant pressure via integrated speed control
- Robust, stainless steel design
- Easy installation
- Low energy consumption
- Dry running protection
- Noise level below 55 dBA and even lower at controlled speed
- Five way fitting with non-return valve
- Diaphragm tank
- Pressure gauge
- Pressure sensor
- High-efficiency motor with frequency converter (IP55)
- Without cable and plug
- O-ring shaft seal with fixed driver, silicon carbide rotating seal face, silicon carbide stationary seal face and EPDM secondary seal
Product Details
Grundfos Centrifugal Booster Pump, Compact Multi-Stage, Series: CMBE, 52.8 gpm, 1-1/2 in NPT Inlet, 1-1/2 in NPT Outlet, 54 m Maximum Head, 2 hp, 200 to 240 VAC, 50 Hz, 1 ph, 360 to 4000 rpm Motor, (2) 304 Stainless Steel Impeller, Horizontal Mount, 122 deg F Ambient, IP55, 304 Stainless Steel, 14.84 in L x 9.13 in W x 3.62 in H
The Grundfos CMBE constant water pressure booster pump boasts premium craftsmanship with stainless steel construction for durability in residential and light commercial settings. This all-in-one solution features a built-in sensor, controller, and check valve. With a high efficiency permanent magnet motor, the CMBE offers exceptional performance while reducing energy consumption. The integrated pressure sensor monitors water usage changes, signaling the speed controller to adapt motor speed accordingly. The MGE motor includes thermal protection against slow overloading and blocking, ensuring reliable operation.
Attributes
Features
- Constant pressure via integrated speed control
- Robust, stainless steel design
- Easy installation
- Low energy consumption
- Dry running protection
- Noise level below 55 dBA and even lower at controlled speed
- Five way fitting with non-return valve
- Diaphragm tank
- Pressure gauge
- Pressure sensor
- High-efficiency motor with frequency converter (IP55)
- Without cable and plug
- O-ring shaft seal with fixed driver, silicon carbide rotating seal face, silicon carbide stationary seal face and EPDM secondary seal
